Planetary Gear And 2-4 Brake

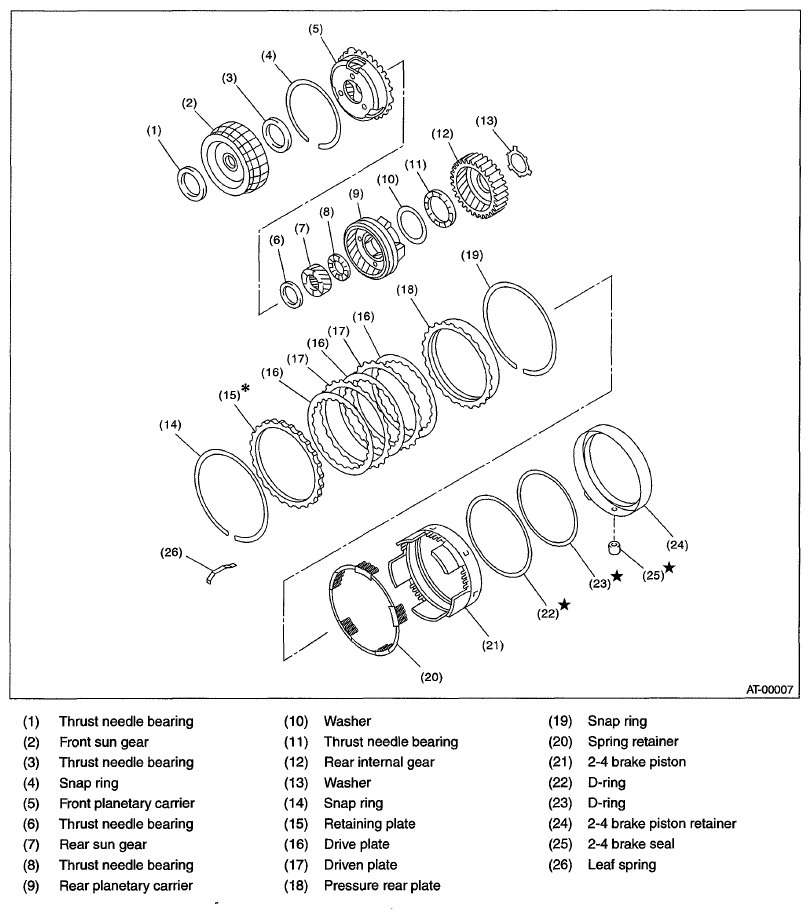

Fig 1: Exploded View Of Planetary Gear And 2-4 Brake
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
