Transfer And Extension Case

MP-T MODEL

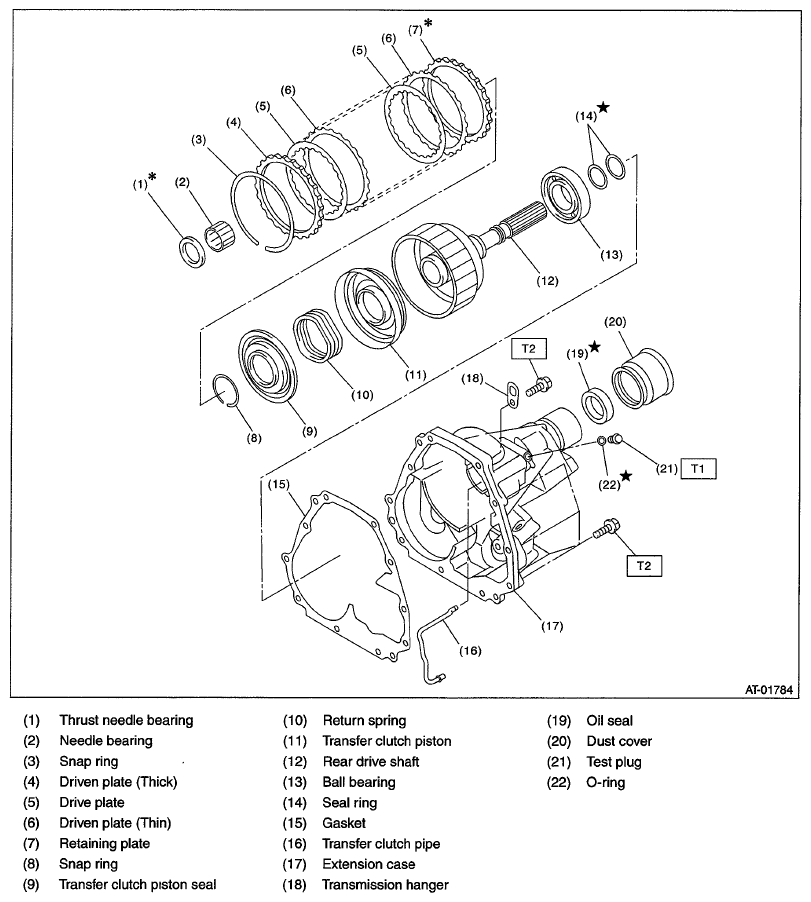

Fig 1: Exploded View Of Transfer And Extension Case (MP-T Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 13 (1.3, 9.6)

T2: 25 (2.5, 18.4)
