Inhibitor Switch: Installation

Connect the inhibitor switch harness connector to the inhibitor switch.
Install the inhibitor switch to the transmission case.

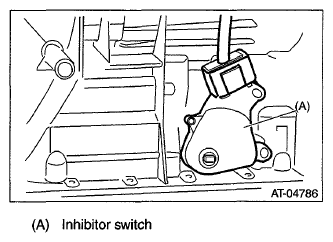

Fig 1: Identifying Inhibitor Switch
Courtesy of SUBARU OF AMERICA, INC.
Install the shifter arm and affix with a new spring pin.

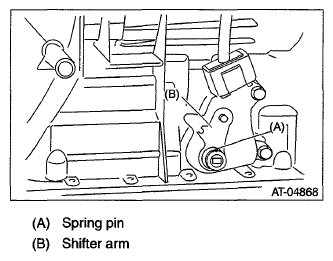

Fig 2: Identifying Spring Pin And Shifter Arm
Courtesy of SUBARU OF AMERICA, INC.
Move the shifter arm to the neutral position.
Using the ST, tighten the two bolts holding the inhibitor switch.
ST 499267300 STOPPER PIN

Tightening torque: 5 N.m (0.5 kgf-m, 3.7 ft-lb)

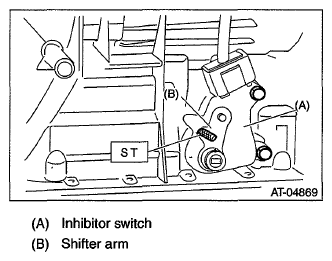

Fig 3: Tightening Bolts Holding Inhibitor Switch Using ST 499267300 Stopper Pin
Courtesy of SUBARU OF AMERICA, INC.
Install the select cable to the shifter arm.
Install the plate assembly to the transmission.
Tightening torque: T: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

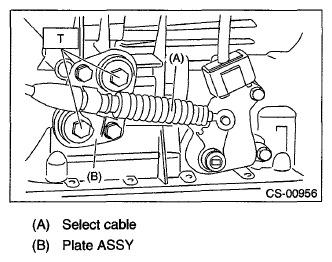

Fig 4: Identifying Select Cable And Plate Assy
Courtesy of SUBARU OF AMERICA, INC.
Attach the washer and snap pin to the shifter arm.

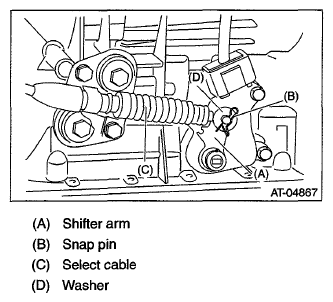

Fig 5: Identifying Shifter Arm, Snap Pin, Select Cable And Washer
Courtesy of SUBARU OF AMERICA, INC.
Install the front and center exhaust pipe. Refer to INSTALLATION , Front Exhaust Pipe. Refer to INSTALLATION , Center Exhaust Pipe.
Lower the vehicle.
Inspect the inhibitor switch. Refer to INSPECTION , Inhibitor Switch.
