Oil Charge Pipe: Installation

Apply ATF on a new O-ring and install together with the oil charge pipe.
NOTE: Use new bolts.

Tightening torque: 38 N.m (3.9 kgf-m, 28.0 ft-lb)

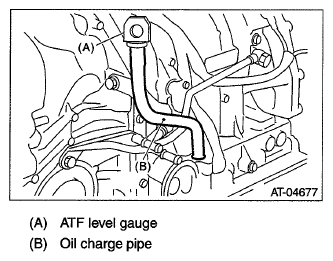

Fig 1: Identifying ATF Level Gauge And Oil Charge Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake chamber. Refer to INSTALLATION , Air Intake Chamber.
