Transmission Control Device: Installation

Install the detent spring to the transmission case.
Tightening torque: 6 N.m (0.6 kgf-m, 4.4 ft-lb)

Fig 1: Identifying Detent Spring
Courtesy of SUBARU OF AMERICA, INC.
Insert the range select lever, and tighten the bolts.
Tightening torque: 6 N.m (0.6 kgf-m, 4.4 ft-lb)

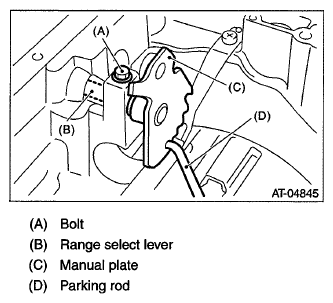

Fig 2: Identifying Range Select Lever
Courtesy of SUBARU OF AMERICA, INC.
Insert the manual plate and parking rod.

Fig 3: Identifying Manual Plate And Parking Rod
Courtesy of SUBARU OF AMERICA, INC.
Insert a new straight pin to manual plate.

Fig 4: Identifying Straight Pin Of Manual Plate
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pan and the control valve assembly. Refer to INSTALLATION , Control Valve Body.
Turn over the transmission case to its original position.
Install the pitching stopper bracket.
Tightening torque: 41 N.m (4.2 kgf-m, 30.2 ft-lb)
Install and adjust the inhibitor switch. Refer to INHIBITOR SWITCH .
Insert the inhibitor switch connector and transmission harness connector onto the stay.

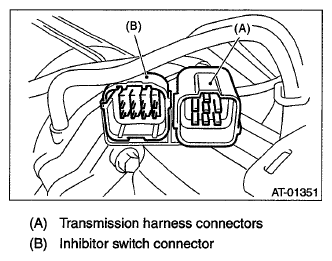

Fig 5: Identifying Inhibitor Switch And Transmission Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the air breather hose. Refer to INSTALLATION , Air Breather Hose.
Insert the input shaft while rotating it lightly by hand, and then check the amount of protrusion.
Normal protrusion A:

50 - 55 mm (1.97-2.17 in)

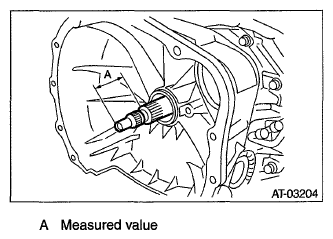

Fig 6: Identifying Input Shaft Normal Protrusion A
Courtesy of SUBARU OF AMERICA, INC.
Install the torque converter clutch assembly. Refer to INSTALLATION , Torque Converter Clutch Assembly.
Install the transmission assembly to the vehicle. Refer to INSTALLATION , Automatic Transmission Assembly.
