Transmission Control Module (TCM): Installation

Install the TCM.
Tightening torque: 7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

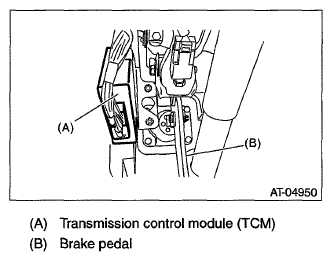

Fig 1: Identifying Brake Pedal And Transmission Control Module (TCM)
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the TCM.
Install in the reverse order of removal.
Execute the learning control promotion. Refer to FACILITATION OF LEARNING CONTROL , OPERATION, Subaru Select Monitor.
