5MT Gear Shift Lever

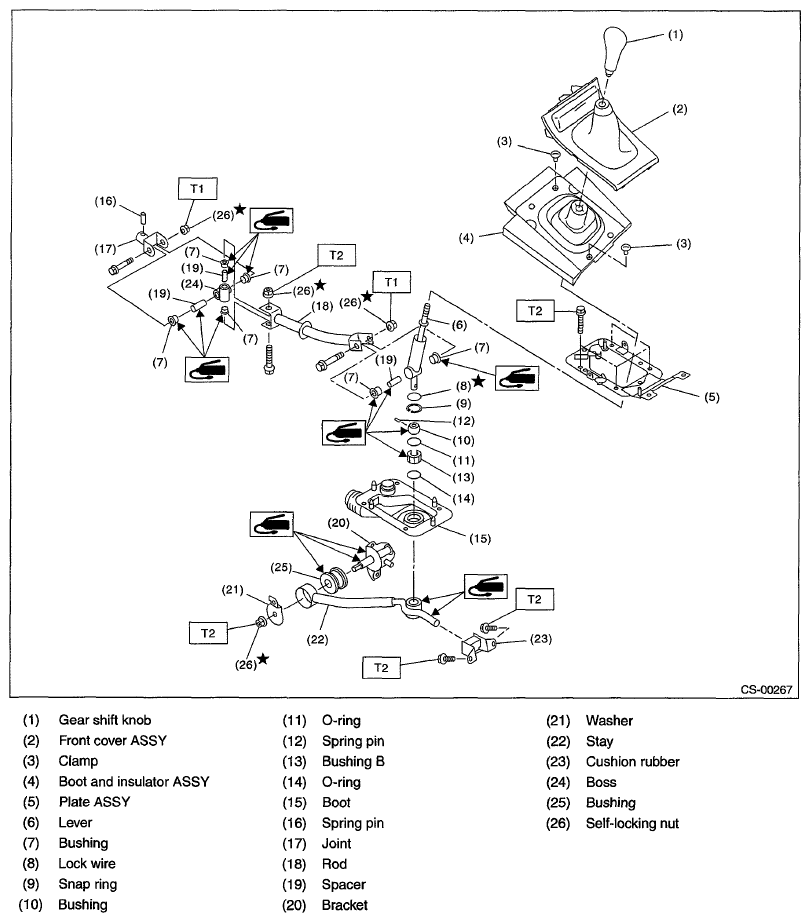

Fig 1: Exploded View Of 5MT Gear Shift Lever Components
G06336911Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 12 (1.2, 8.9)

T2: 18 (1.8, 13.3)
