At Select Lever

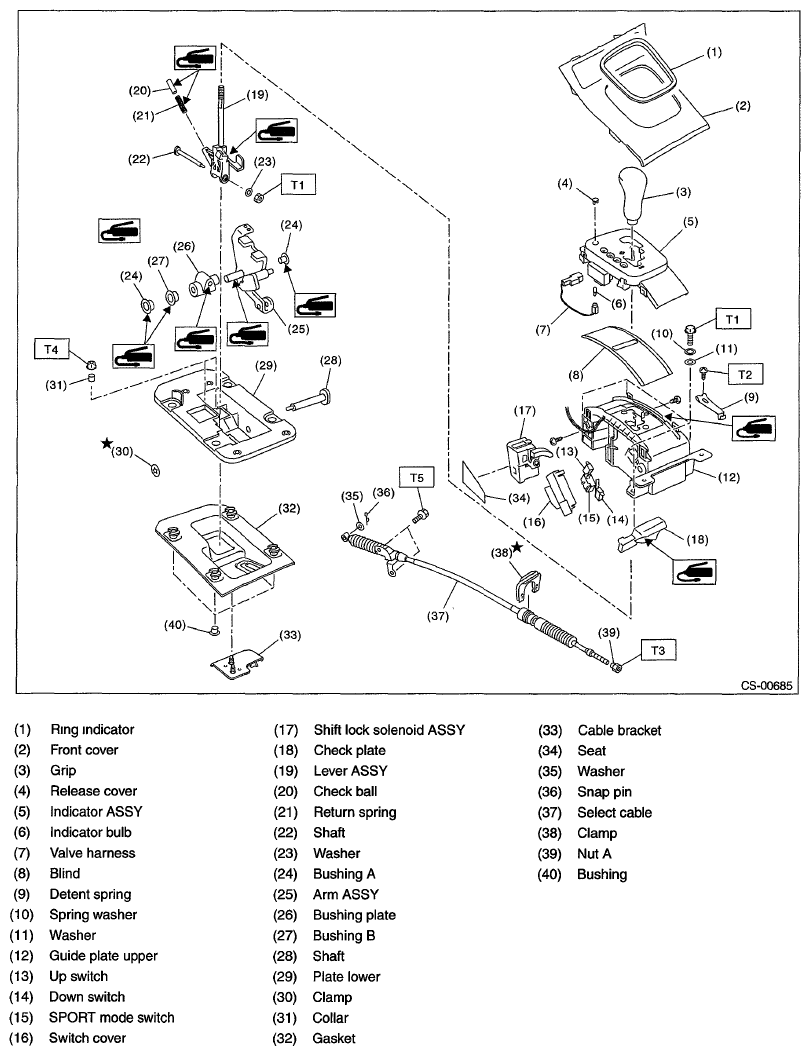

Fig 1: Exploded View Of AT Select Lever Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5.1 (0.5, 3.8)

T2: 6.9 (0.7, 5.1)

T3: 7.5 (0.8, 5.5)

T4: 12.7 (1.3, 9.4)

T5: 18 (1.8, 13.3)
