6MT Model

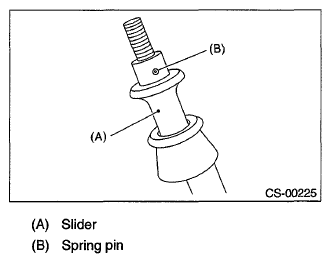

Remove the spring pin from the slider.

Fig 1: Identifying Slider And Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Remove the slider and spring.

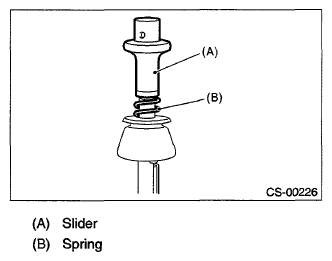

Fig 2: Identifying Slider And Spring
Courtesy of SUBARU OF AMERICA, INC.
Cut the band clip.
Remove the reverse check cable from the cable plate.

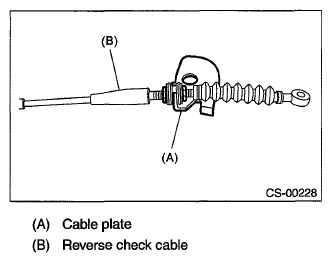

Fig 3: Identifying Cable Plate And Reverse Check Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the reverse check cable from the gear shift assembly.

Fig 4: Identifying Reverse Check Cable
Courtesy of SUBARU OF AMERICA, INC.

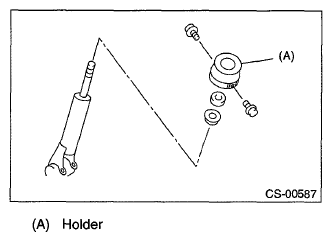

Remove the holder and spring.

Fig 5: Identifying Holder
Courtesy of SUBARU OF AMERICA, INC.

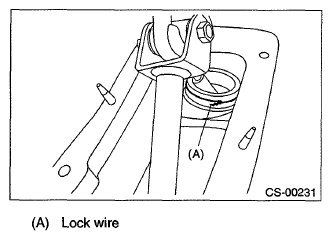

Disassemble the lock wires.
NOTE: Do not reuse the lock wire.

Fig 6: Identifying Lock Wire
Courtesy of SUBARU OF AMERICA, INC.

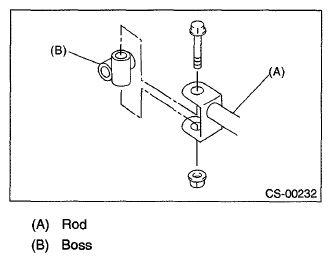

Remove the boss from the rod.

Fig 7: Identifying Rod And Boss
Courtesy of SUBARU OF AMERICA, INC.

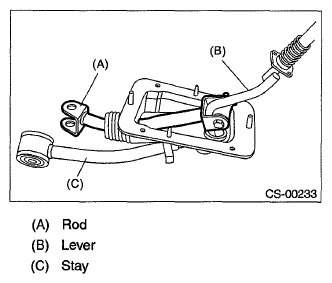

Remove the rod from lever.

Fig 8: Identifying Rod, Lever And Stay
Courtesy of SUBARU OF AMERICA, INC.
Separate the rod and inner boot.
Remove the snap ring from the stay.

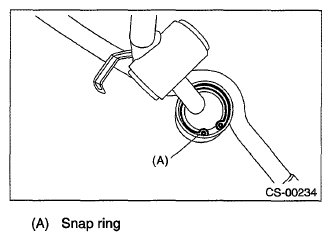

Fig 9: Identifying Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Separate the gear shift lever and the stay.

Fig 10: Identifying Gear Shift Lever And Stay
Courtesy of SUBARU OF AMERICA, INC.
Remove the boot and bushing from gear shift lever.

Fig 11: Identifying Bushing And O-Ring
Courtesy of SUBARU OF AMERICA, INC.

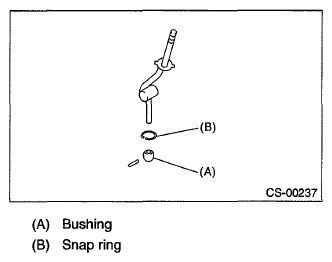

Remove the spring pin, and then remove the bushing and snap ring.

Fig 12: Identifying Spring Pin And Bushing
Courtesy of SUBARU OF AMERICA, INC.

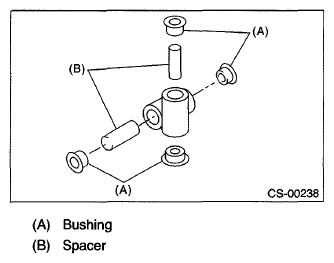

Remove the bushing and spacer from the boss.

Fig 13: Identifying Bushing And Spacer
Courtesy of SUBARU OF AMERICA, INC.

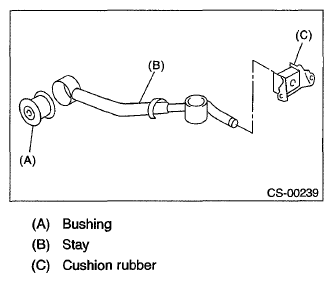

Remove the bushing and cushion rubber from the stay.

Fig 14: Identifying Bushing, Cushion Rubber And Stay
Courtesy of SUBARU OF AMERICA, INC.
