5MT Model

Install the joint to the transmission and secure with a spring pin.

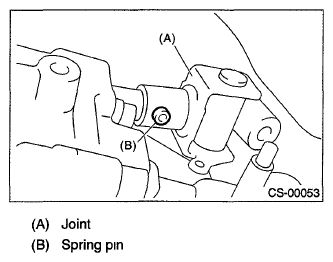

Fig 1: Identifying Joint And Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Insert the gear shift lever from the room side.
NOTE: Insert the rod and the stay, and then temporarily set them onto the transmission mount.

Fig 2: Removing Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Mount the cushion rubber on the vehicle body.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

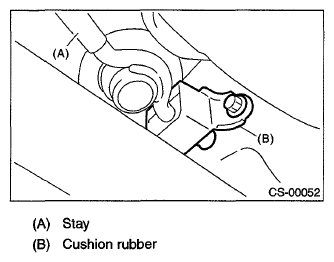

Fig 3: Identifying Cushion Rubber And Stay
Courtesy of SUBARU OF AMERICA, INC.
Using new self-locking nuts, connect the rod to the joint.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

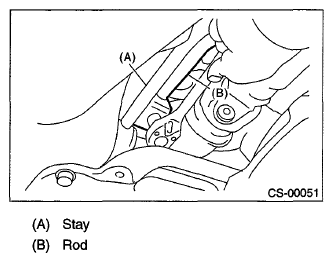

Fig 4: Identifying Stay And Rod
Courtesy of SUBARU OF AMERICA, INC.
Using new self-locking nuts, connect the stay to the transmission bracket.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

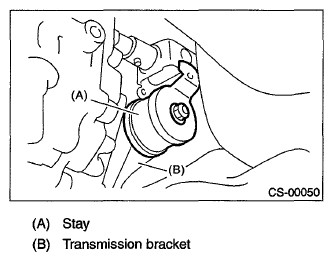

Fig 5: Identifying Stay And Transmission Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the heat shield cover.

Fig 6: Identifying Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the rear exhaust pipe and muffler.
- SOHC model
  Ref. to INSTALLATION , Rear Exhaust Pipe. Ref. to INSTALLATION , Muffler.
- DOHC turbo model
  Ref. to INSTALLATION , Rear Exhaust Pipe. Ref. to INSTALLATION , Muffler.
Install the plate assembly to the vehicle body.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
1. Set the plate assembly to the vehicle.
2. Temporarily tighten the bolt (A).
3. Tighten the bolt (B).
4. Tighten the bolt (A).
5. Tighten the bolts (C) and (D).

  Fig 7: Identifying Plate Assembly Bolts
  Courtesy of SUBARU OF AMERICA, INC.
Install the harness clamp to the plate.
Install the boot and insulator assembly, and secure with a clamp.

Fig 8: Identifying Bushing And Insulator Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install the front cover assembly.
Install the console box. Ref. to INSTALLATION , Console Box.
Install the shift knob.
Check that the gear can be shifted accurately into each gear ranges.
