6MT Model

Set the vehicle on a lift.
Disconnect the ground cable from the battery.
Remove the gear shift knob.
Remove the console box front. Ref. to REMOVAL , Console Box.
Remove the front cover assembly.
Remove the clamp.

Fig 1: Identifying Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the bushing and insulator assembly.

Fig 2: Identifying Bushing And Insulator Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the harness clamp from the plate assembly.

Fig 3: Identifying Harness Clamp On Plate Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate assembly from the vehicle body.

Fig 4: Identifying Plate Assembly Bolts
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Remove the under cover.
Remove the rear exhaust pipe and muffler. Ref. to REMOVAL , Rear Exhaust Pipe. Ref. to REMOVAL , Muffler.
Remove the heat shield cover.

Fig 5: Identifying Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the crossmember. Ref. to REMOVAL , Transmission Mounting System.
Remove the snap pin and washer, and remove the reverse check cable from the reverse check lever.

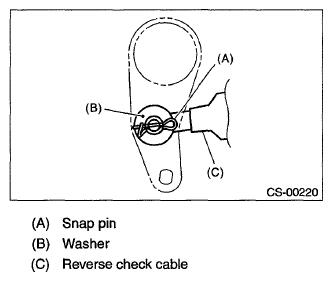

Fig 6: Identifying Snap Pin And Washer
Courtesy of SUBARU OF AMERICA, INC.
Move the transmission to the right side, and remove the joint COMPL, stay bolts and reverse check cable.
NOTE: If the transmission is not moved aside, the joint COMPL and stay bolts may contact the body and cause damage.

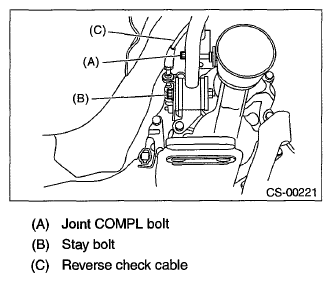

Fig 7: Identifying Joint COMPL Bolt, Stay Bolt And Reverse Check Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the cushion rubber from the vehicle body.

Fig 8: Identifying Cushion Rubber On Vehicle Body
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove the gear shift lever.
