Reverse Check Cable: Removal

Set the vehicle on a lift.
Remove the gear shift knob.
Remove the console box front. Ref. to REMOVAL , Console Box.
Remove the front cover assembly.
Remove the spring pin from the slider.

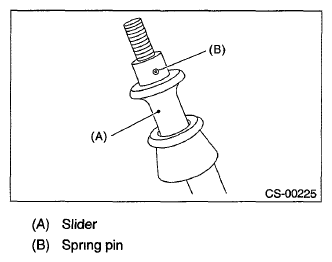

Fig 1: Identifying Slider And Spring
Courtesy of SUBARU OF AMERICA, INC.
Remove the slider and spring.

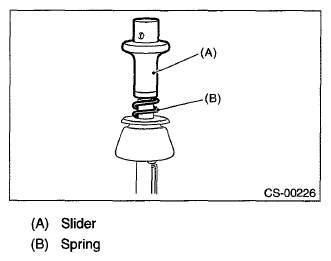

Fig 2: Identifying Slider And Spring
Courtesy of SUBARU OF AMERICA, INC.
Cut the band clip, and separate the reverse check cable from the gear shift lever.
Lift up the vehicle.
Remove the under cover.
Remove the rear exhaust pipe and muffler. Ref. to REMOVAL , Rear Exhaust Pipe. Ref. to REMOVAL , Muffler.
Remove the crossmember. Ref. to REMOVAL , Transmission Mounting System.
Remove the snap pin and washer, and separate the reverse check cable from the reverse check lever.

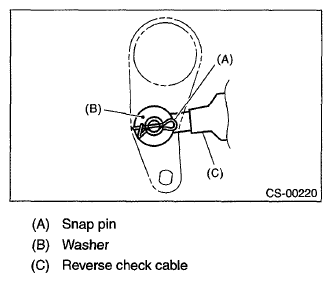

Fig 3: Identifying Snap Pin And Washer
Courtesy of SUBARU OF AMERICA, INC.
Move the transmission to the right side, and remove the stay bolts and the reverse check cable.
NOTE: If the transmission is not moved aside, the stay bolts may contact the body and cause damage.

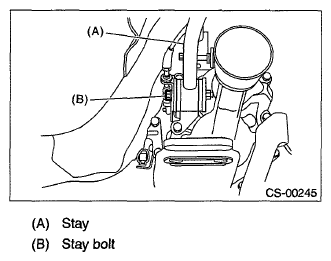

Fig 4: Identifying Stay And Stay Bolt
Courtesy of SUBARU OF AMERICA, INC.
Lift the stay clip, and separate the stay and the reverse check cable.

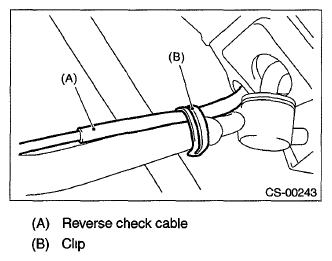

Fig 5: Identifying Reverse Check Cable And Clip
Courtesy of SUBARU OF AMERICA, INC.
Pull out the reverse check cable from underside of the vehicle to remove it.
NOTE: Be careful not to damage the inner boot.
Loosen the lock nut, and remove the reverse check cable from the cable plate.

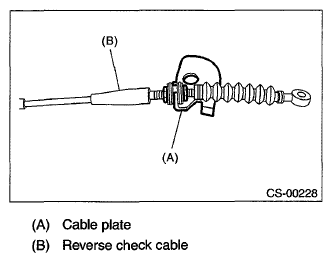

Fig 6: Identifying Cable Plate And Reverse Check Cable
Courtesy of SUBARU OF AMERICA, INC.
