Select Cable: Adjustment

Set the vehicle on a lift.
Shift the select lever to "N" range.
Lift up the vehicle.
Remove the rear exhaust pipe and muffler.
- SOHC model
  Ref. to REMOVAL , Rear Exhaust Pipe. Ref. to REMOVAL , Muffler.
- DOHC turbo model
  Ref. to REMOVAL , Rear Exhaust Pipe. Ref. to REMOVAL , Muffler.
- DOHC 3.0 L model
  Ref. to REMOVAL , Rear Exhaust Pipe. Ref. to REMOVAL , Muffler.
Remove the heat shield cover.

Fig 1: Identifying Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Loosen the adjusting nuts on both sides.

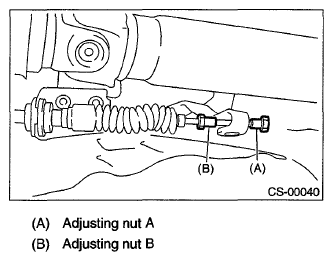

Fig 2: Identifying Adjusting Nuts
Courtesy of SUBARU OF AMERICA, INC.
Turn adjusting nut B until it lightly touches the connector.

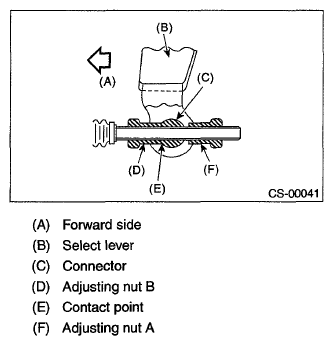

Fig 3: Identifying Adjusting Nuts, Contact Point And Connector
Courtesy of SUBARU OF AMERICA, INC.
Set a spanner wrench to adjusting nut B so that it does not rotate, and then tighten the adjusting nut A.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

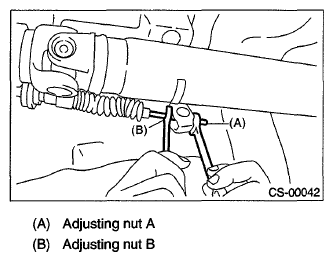

Fig 4: Tightening Adjusting Nut A
Courtesy of SUBARU OF AMERICA, INC.
After the completion of adjustment, confirm that the select lever operates normally at all ranges.
Install in the reverse order of removal.
