Select Cable: Installation

Install the select cable to the plate assembly.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 1: Identifying Select Cable Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the select cable to the shifter arm. (4AT model)
Install the select cable to the range select lever. (5AT model)
Install the plate assembly to the transmission.
Tightening torque:

T: 25 N.m (2.5 kgf-m, 18.4 ft-lb)
- 4AT

  Fig 2: Identifying Select Cable And Plate Assy (4AT)
  Courtesy of SUBARU OF AMERICA, INC.
- 5AT

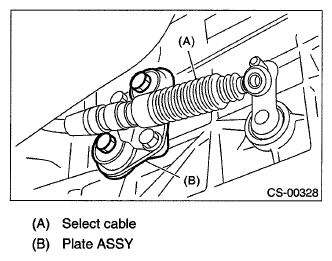

  Fig 3: Identifying Select Cable And Plate Assy (5AT)
  Courtesy of SUBARU OF AMERICA, INC.
Install the washer and snap pin to the shifter arm. (4AT model)

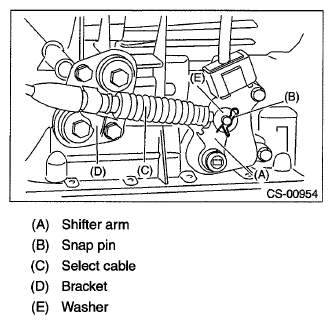

Fig 4: Identifying Shifter Arm With Washer And Snap Pin (4AT Model)
Courtesy of SUBARU OF AMERICA, INC.
Install the washer and snap pin to the range select lever. (5AT model)

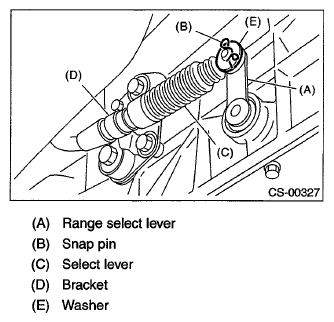

Fig 5: Identifying Range Select Lever With Washer And Snap Pin (5AT Model)
Courtesy of SUBARU OF AMERICA, INC.
Install new clamp paying attention to the installing direction.

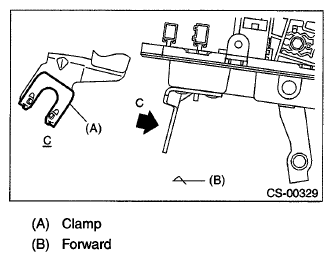

Fig 6: Installation Direction Of Clamp
Courtesy of SUBARU OF AMERICA, INC.
Insert the tip of inner cable into connector hole of select lever, and fix the cable to bracket.

Fig 7: Inserting Tip Of Inner Cable Into Connector Hole Of Select Lever
Courtesy of SUBARU OF AMERICA, INC.
Shift the select lever to the "N" range, and then adjust the select cable position. Ref. to ADJUSTMENT , Select Cable.
Install the heat shield cover.

Fig 8: Identifying Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the front, center and rear exhaust pipes, and the muffler. (Non-turbo model)
- SOHC model
  Ref. to INSTALLATION , Front Exhaust Pipe. Ref. to INSTALLATION , Center Exhaust Pipe. Ref. to INSTALLATION , Rear Exhaust Pipe. Ref. to INSTALLATION , Muffler.
- DOHC 3.0 L model
  Ref. to INSTALLATION , Front Exhaust Pipe. Ref. to INSTALLATION , Rear Exhaust Pipe. Ref. to INSTALLATION , Muffler.
Install the center, rear exhaust pipes and the muffler. (Turbo model)
Ref. to INSTALLATION , Center Exhaust Pipe. Ref. to INSTALLATION , Rear Exhaust Pipe. Ref. to INSTALLATION , Muffler.
