Select Lever: Removal

Set the vehicle on a lift.
Disconnect the ground cable from the battery.
Shift the select lever to "N" range.
Lift up the vehicle.
Remove the rear exhaust pipe and muffler.
- SOHC model
  Ref. to REMOVAL , Rear Exhaust Pipe. Ref. to REMOVAL , Muffler.
- DOHC turbo model
  Ref. to REMOVAL , Rear Exhaust Pipe. Ref. to REMOVAL , Muffler.
- DOHC 3.0 L model
  Ref. to REMOVAL , Rear Exhaust Pipe. Ref. to REMOVAL , Muffler.
Remove the heat shield cover.

Fig 1: Identifying Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.

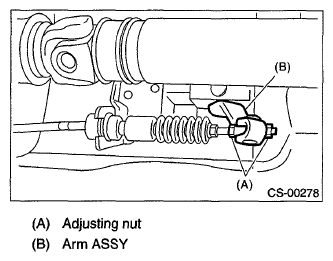

Remove the cable from the arm assembly.

Fig 2: Identifying Adjusting Nut And Arm Assembly
Courtesy of SUBARU OF AMERICA, INC.

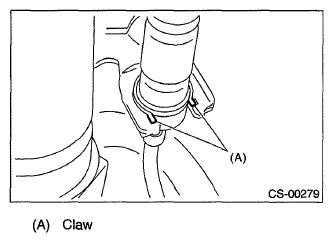

Raise the claw of clamp to remove the cable.

Fig 3: Identifying Claw Of Clamp
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove the console box. Ref. to REMOVAL , Console Box.
Remove the center console. Ref. to REMOVAL , Center Console.
Remove the harness clips from the bracket.

Fig 4: Identifying Harness Clips
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connectors, and then remove the four bolts to take out the select lever assembly from vehicle body.

Fig 5: Locating Select Lever Assembly Bolts
Courtesy of SUBARU OF AMERICA, INC.
