Crankshaft Position Sensor: Removal

Remove the collector cover.
Disconnect the ground cable from battery.

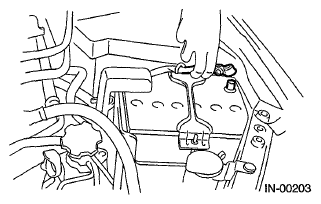

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake chamber. Refer to REMOVAL , Air Intake Chamber.
Remove the service hole cover.

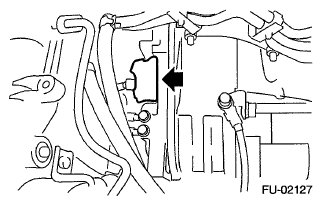

Fig 2: Locating Service Hole Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the crankshaft position sensor.

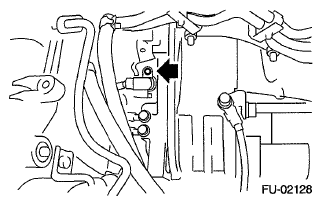

Fig 3: Locating Crankshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from crankshaft position sensor.
