Engine Control Module (ECM): Removal

Disconnect the ground cable from battery.

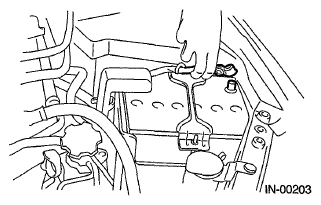

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the lower inner trim of passenger's side. Refer to REMOVAL , Lower Inner Trim.
Detach the floor mat of passenger's seat.
Remove the protect cover.

Fig 2: Locating Protect Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the nuts and bolts which hold the ECM to the bracket.
Remove the clip (A) from bracket.

Fig 3: Locating ECM Bracket Nuts And Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ECM connectors, and take out the ECM.
