RH Side

Remove the collector cover.
Release the fuel pressure. Refer to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel.
Open the fuel filler lid, and remove the fuel filler cap.
Disconnect the ground cable from battery.

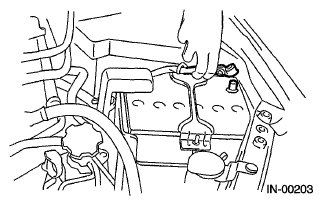

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the air cleaner case. Refer to REMOVAL , Air Cleaner Case.
Remove the fuel pipe protector RH.

Fig 2: Locating Fuel Pipe Protector RH Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from fuel injector.

Fig 3: Locating Fuel Injector Connectors
Courtesy of SUBARU OF AMERICA, INC.
Remove the engine harness from the fuel injector pipe RH.
Remove the bolt which holds fuel injector pipe onto cylinder head.

Fig 4: Locating Fuel Injector Pipe RH Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector while lifting up the fuel injector pipe.
