Fuel Level Sensor: Removal
WARNING:
Place "NO OPEN FLAMES" signs near the working area.
CAUTION:
- Be careful not to spill fuel.
- If the fuel gauge indicates that two thirds or more of the fuel is remaining, be sure to drain fuel before starting work to avoid the fuel to spill.
NOTE:
The fuel level sensor is built in fuel pump assembly.
- Remove the fuel pump assembly. Refer to REMOVAL , Fuel Pump.

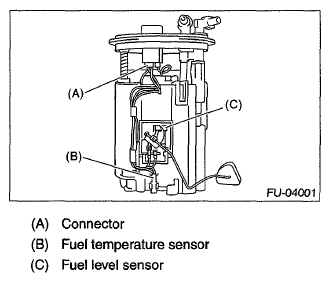

- Disconnect the connector from fuel pump bracket.
- Remove the fuel temperature sensor.
- Remove the fuel level sensor.
