Fuel Sub Level Sensor: Removal

WARNING: Place "NO OPEN FLAMES" signs near the working area.

CAUTION:

Be careful not to spill fuel.
If the fuel gauge indicates that two thirds or more of the fuel is remaining, be sure to drain fuel before starting work to avoid the fuel to spill.

Release the fuel pressure. Refer to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel.
Drain fuel. Refer to DRAINING FUEL (WITH SUBARU SELECT MONITOR) , PROCEDURE, Fuel.
Disconnect the ground cable from battery.

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the rear seat.
Remove the service hole cover.
1. Remove bolt (A).
2. Push the grommet (B) down and remove the service hole cover.

  Fig 2: Identifying Service Hole Cover Fasteners And Grommet
  Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the fuel sub level sensor.

Fig 3: Identifying Fuel Sub Level Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the quick connector on the fuel delivery hose and jet pump hose. Refer to REMOVAL , Fuel Delivery and Evaporation Lines.
Remove the nuts and bolts which install fuel sub level sensor on fuel tank.

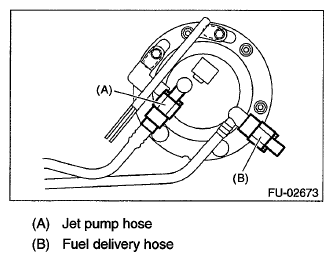

Fig 4: Identifying Fuel Delivery Hose And Jet Pump Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel sub level sensor.
