Fuel Line

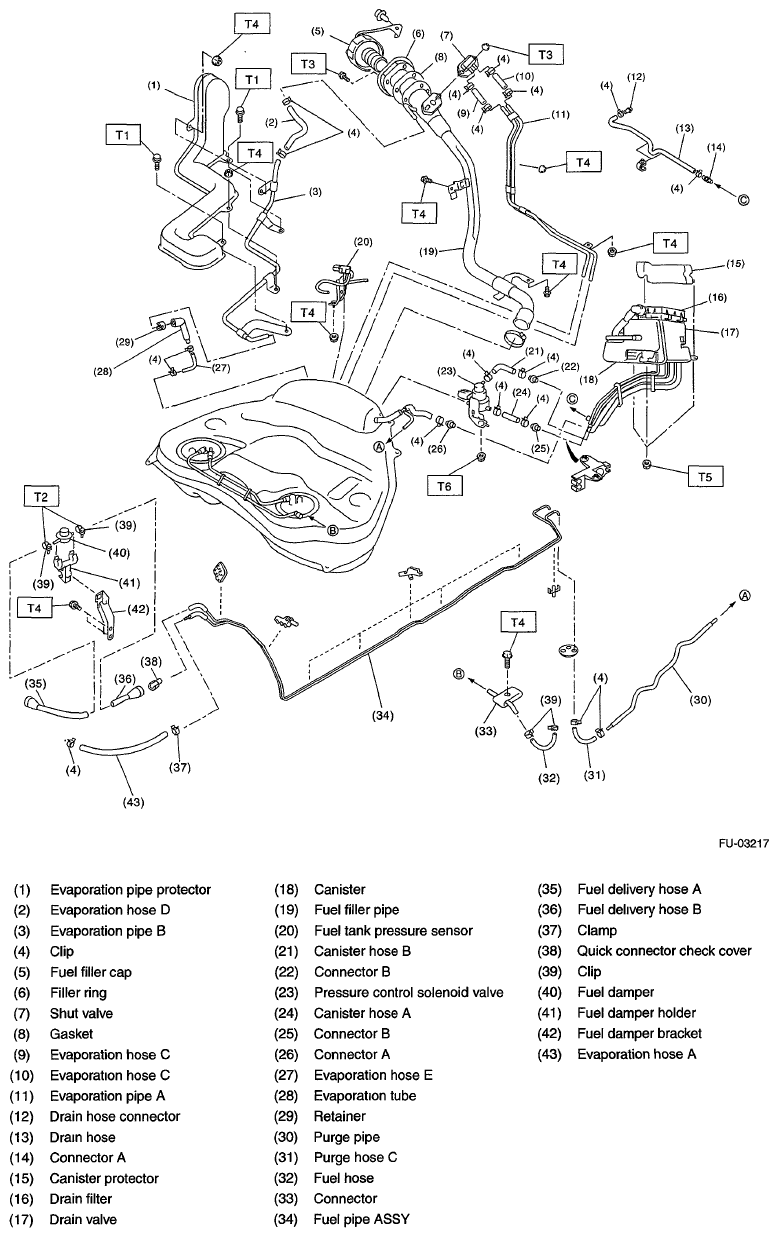

Fig 1: Fuel Line Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1 (0.1,0.7)

T2: 1.25 (0.1,0.9)

T3: 4.4 (0.4, 3.2)

T4: 7.5 (0.8,5.5)

T5: 8 (0.8,5.9)

T6: 17.6 (1.8, 13.0)
