Intake Manifold: Assembly

Liquid gasket: THREE BOND 1105 (Part No. 004403010) or equivalent

Tightening torque: 17 N.m (1.7 kgf-m, 12.5 ft-lb)

1. Tighten the bolts which install fuel pipes on intake manifold.

   Tightening torque: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

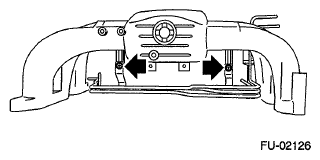

   Fig 1: Locating Fuel Pipes Bolts

   Courtesy of SUBARU OF AMERICA, INC.

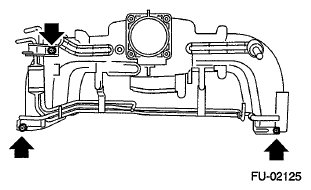

   Fig 2: Locating Fuel Pipes Bolts

   Courtesy of SUBARU OF AMERICA, INC.
2. Connect the fuel injector pipe to fuel hose, and tighten the clamp screw.

   Tightening torque: 1.25 N.m (0.1 kgf-m, 0.9 ft-lb)

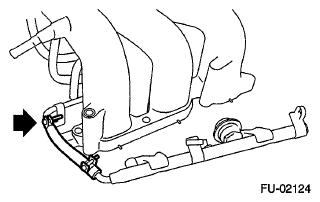

   Fig 3: Locating Fuel Hose Clamp Screw

   Courtesy of SUBARU OF AMERICA, INC.
3. Install the purge control solenoid valve. Refer to INSTALLATION , Purge Control Solenoid Valve.
4. Install the manifold absolute pressure sensor. Refer to INSTALLATION , Manifold Absolute Pressure Sensor.
5. Install the EGR valve. Refer to INSTALLATION , EGR Valve.
6. Install the throttle body to the intake manifold. Refer to INSTALLATION , Throttle Body.
7. Install the engine harness to the intake manifold.
