Knock Sensor: Installation

  1. Install the knock sensor to cylinder block.

    Tightening torque: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

    NOTE: For the knock sensor installation angle, refer to the figure below.

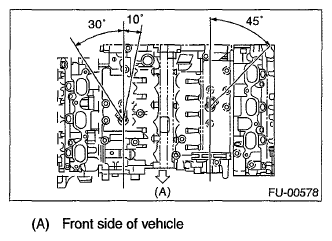

    Fig 1: Identifying Knock Sensor Installation Angle
    G06336083Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the knock sensor connector.
  3. Install the intake manifold. Refer to INSTALLATION , Intake Manifold.
  4. Connect the ground cable to battery.

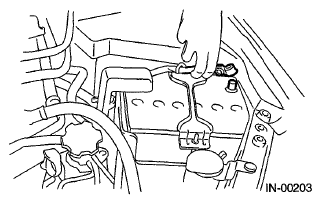

    Fig 2: Connecting Battery Ground Cable
    G06336084Courtesy of SUBARU OF AMERICA, INC.
  5. Install the collector cover.
