Throttle Body: Removal

Remove the collector cover.
Disconnect the ground cable from battery.

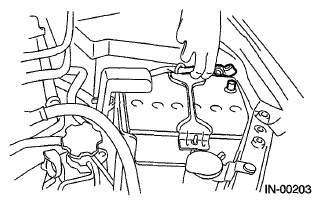

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake chamber. Refer to REMOVAL , Air Intake Chamber.
Disconnect the connector from throttle body.

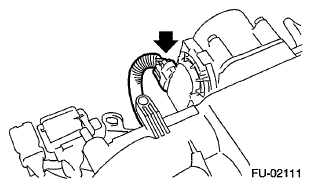

Fig 2: Locating Throttle Body Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the engine coolant hoses (A) from the throttle body.
Remove the bolts (B) which secure throttle body to intake manifold.

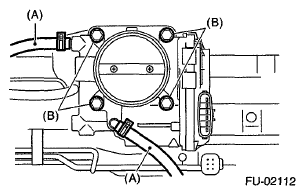

Fig 3: Identifying Engine Coolant Hoses And Throttle Body Bolts
Courtesy of SUBARU OF AMERICA, INC.
