Fuel Line

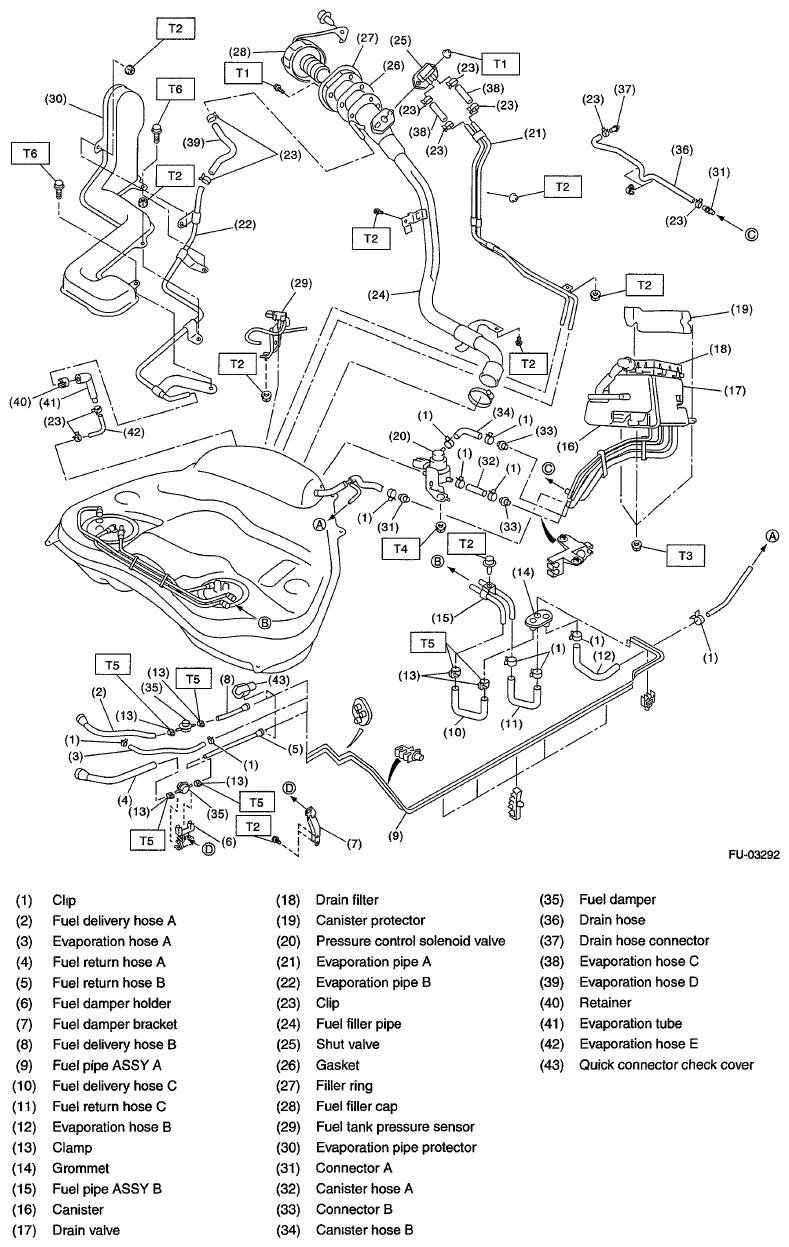

Fig 1: Fuel Line Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 4.4 (0.4, 3.2)

T2: 7.5 (0.8, 5.5)

T3: 8 (0.8, 5.9)

T4: 17.5 (1.8, 12.9)

T5: 1.25 (0.1, 0.9)

T6: 1(0.1, 0.7)
