Front Oxygen (A/F) Sensor: Installation

CAUTION: If lubricant is split onto the exhaust pipe, wipe it off with cloth to avoid emission of smoke or causing a fire.

Before installing front oxygen (A/F) sensor, apply anti-seize compound only to the threaded portion of front oxygen (A/F) sensor to make the next removal easier.
CAUTION: Never apply anti-seize compound to the protector of front oxygen (A/F) sensor.

Anti-seize compound:

NEVER-SEEZ NSN, JET LUBE SS-30 or equivalent
Install the front oxygen (A/F) sensor.
Tightening torque:

30 N.m (3.1 kgf-m, 22.1 ft-lb)

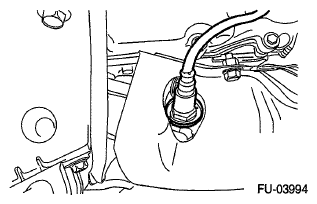

Fig 1: Identifying Front Oxygen (A/F) Sensor
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover.
Lower the vehicle.
Connect the connector of front oxygen (A/F) sensor.

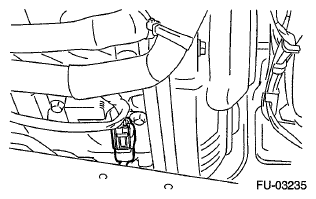

Fig 2: Identifying Connector From Front Oxygen (A/F) Sensor
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake duct and air cleaner case. Refer to INSTALLATION , Air Cleaner Case. Refer to INSTALLATION , Air Intake Duct.
Connect the ground cable to battery.

Fig 3: Connecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
