Knock Sensor: Installation

Install the knock sensor to the cylinder block.
NOTE: The portion of the knock sensor cord that is pulled out must be positioned at a 60° angle relative to the engine rear.

Tightening torque:

24 N.m (2.4 kgf-m, 17.7 ft-lb)

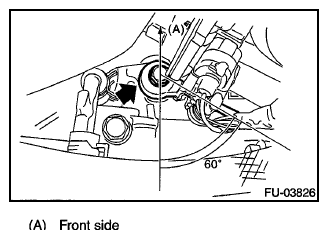

Fig 1: [Identifying Knock Sensor Angle Position]
Courtesy of SUBARU OF AMERICA, INC.
Connect the knock sensor connector.

Fig 2: Locating Knock Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the intercooler. Refer to INSTALLATION , Intercooler.
Connect the ground cable to battery.

Fig 3: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Install the collector cover.
