Air Intake System

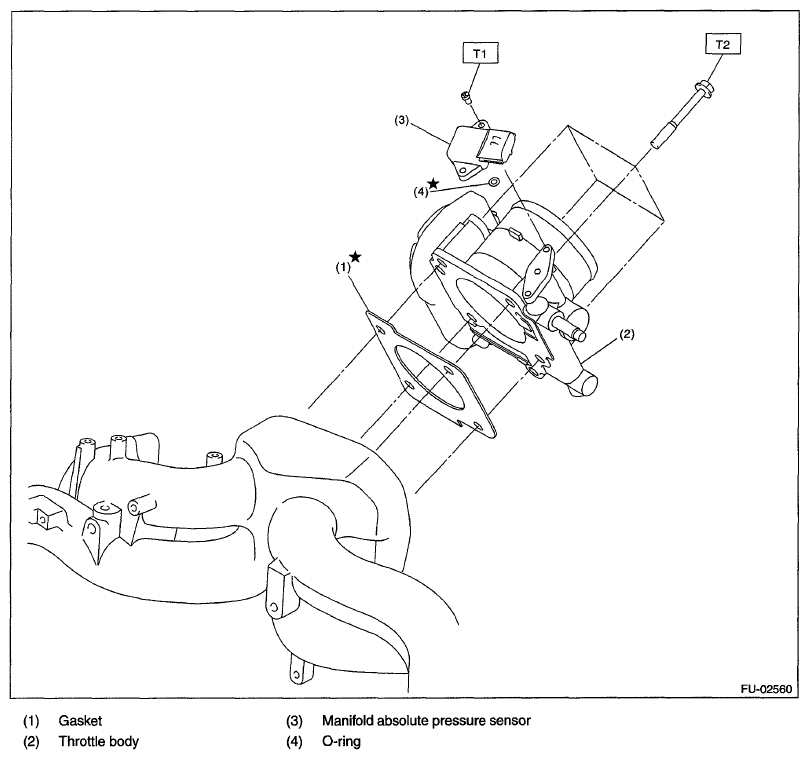

Fig 1: Identifying Air Intake System Components And Tightening Torques

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 2 (0.2,1.5)

T2: 8 (0.8,5.9)
