Select Cable: Installation

Install the select cable to plate assembly.
Tightening torque:

T: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 1: Identifying Select Lever Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the select cable to range select lever.
Install the plate assembly to transmission.
Tightening torque:

24.5 N.m (2.5 kgf-m, 18.1 ft-lb)

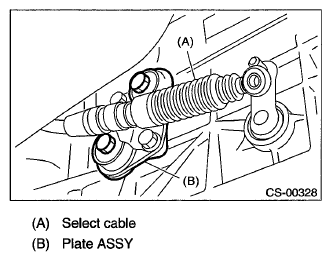

Fig 2: Identifying Select Assembly And Plate Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install the washer and snap pin to range select lever.

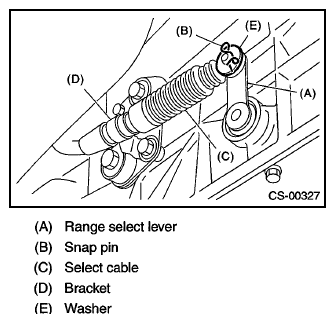

Fig 3: Identifying Range Select Lever, Snap Pin, Select Cable, Bracket And Washer
Courtesy of SUBARU OF AMERICA, INC.
Install new clamp paying attention to the installing direction.

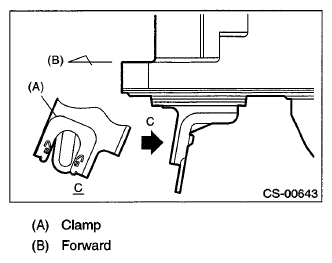

Fig 4: Identifying Clamp
Courtesy of SUBARU OF AMERICA, INC.
Insert the tip of inner cable into connector hole of select lever, and fix the cable to bracket.

Fig 5: Inserting Tip Of Inner Cable Into Connector Hole Of Select Lever
Courtesy of SUBARU OF AMERICA, INC.
Shift the select lever to the "N" range, and then adjust the select cable position. Ref. to ADJUSTMENT , Select Cable.
Install the heat shield cover.
Install the front exhaust pipe, rear exhaust pipe and muffler. Ref. to INSTALLATION , Front Exhaust Pipe. Ref. to INSTALLATION , Rear Exhaust Pipe. Ref. to INSTALLATION , Muffler.
