Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

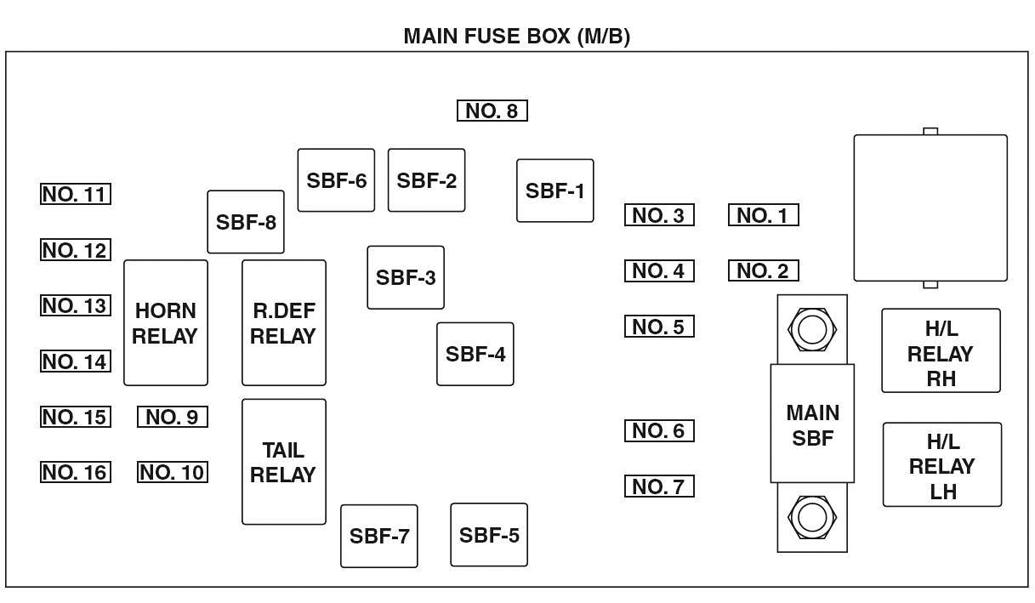

Fig 1: Main Fuse Box (M/B)

Courtesy of SUBARU OF AMERICA, INC.

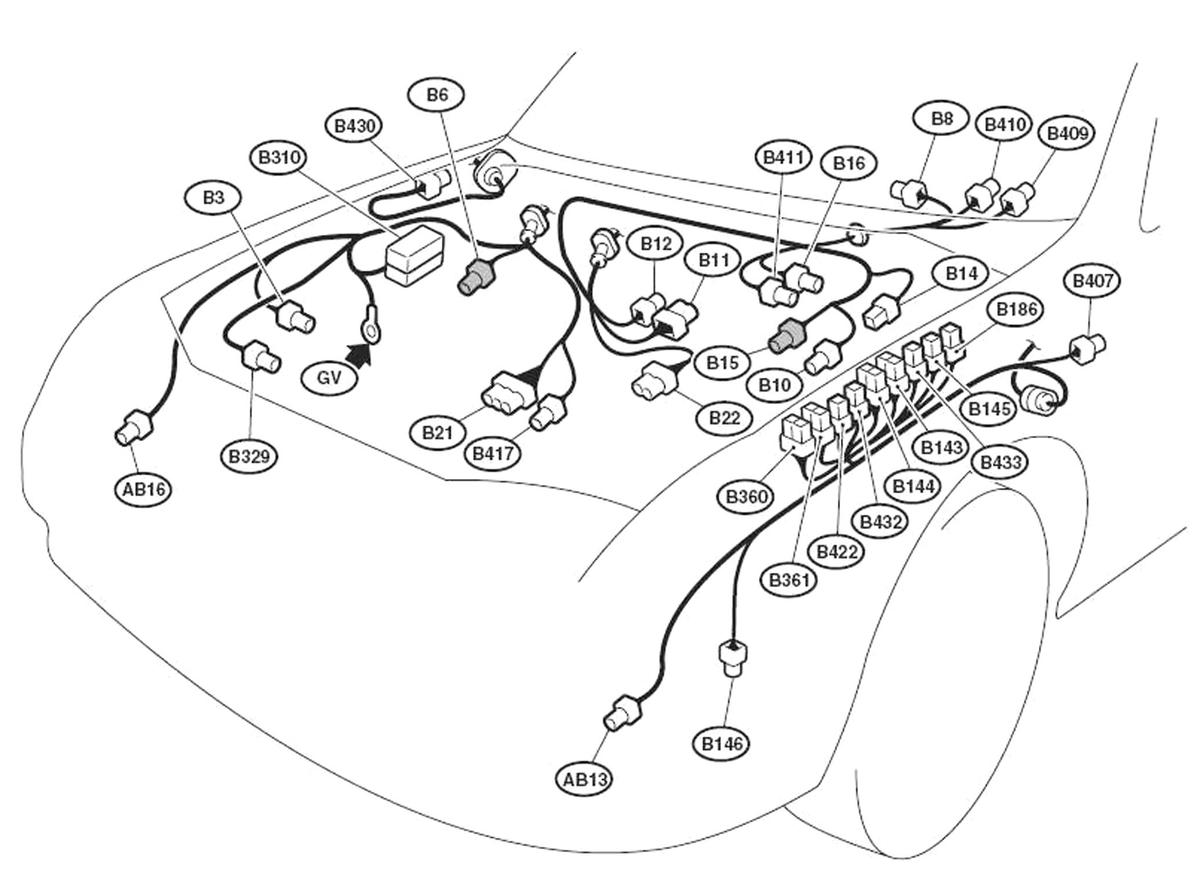

Fig 2: Front Of Engine Compartment

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Engine Compartment

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Dash & Bulkhead

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Engine & Transmission

Courtesy of SUBARU OF AMERICA, INC.

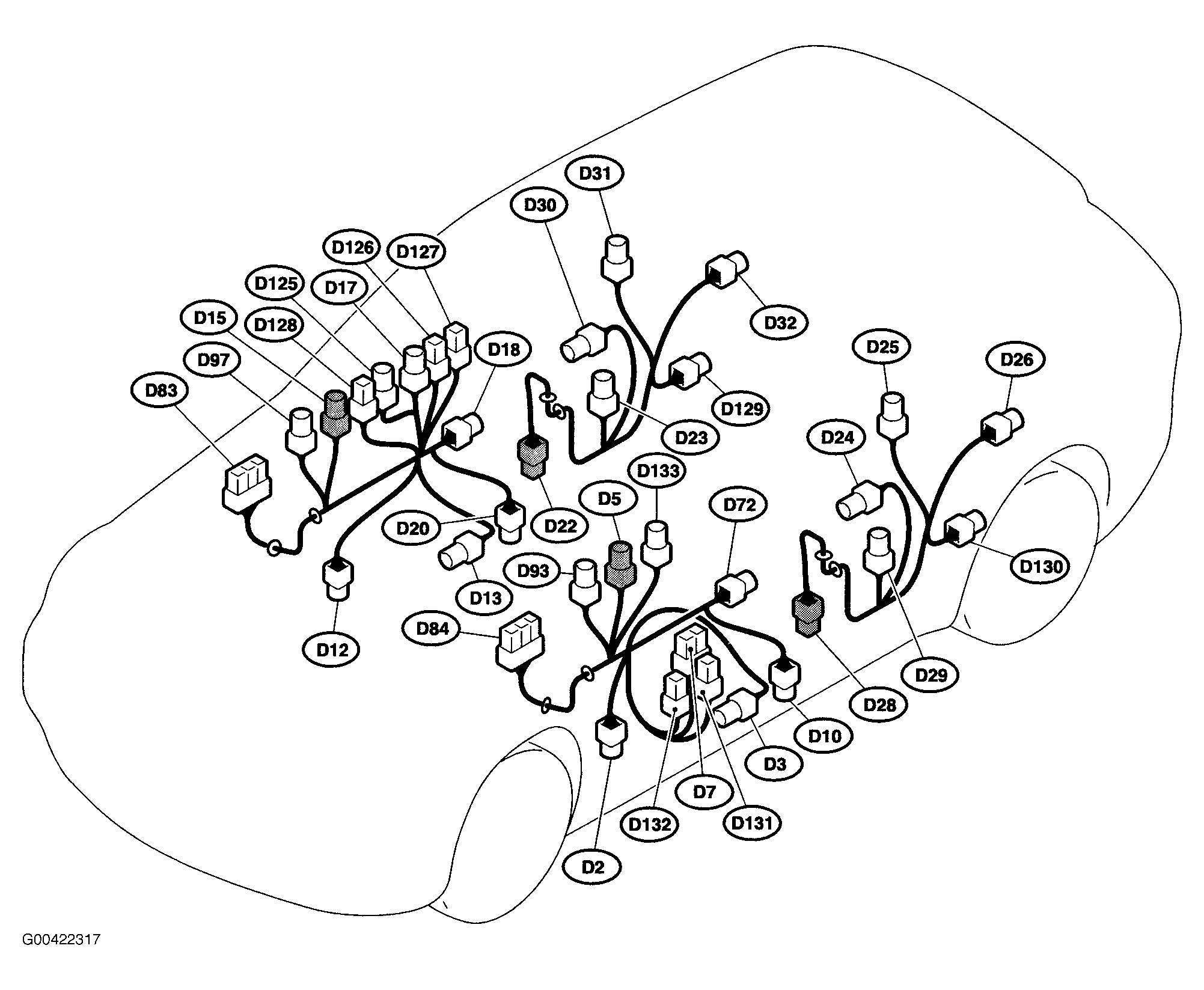

Fig 6: Dash

Courtesy of SUBARU OF AMERICA, INC.

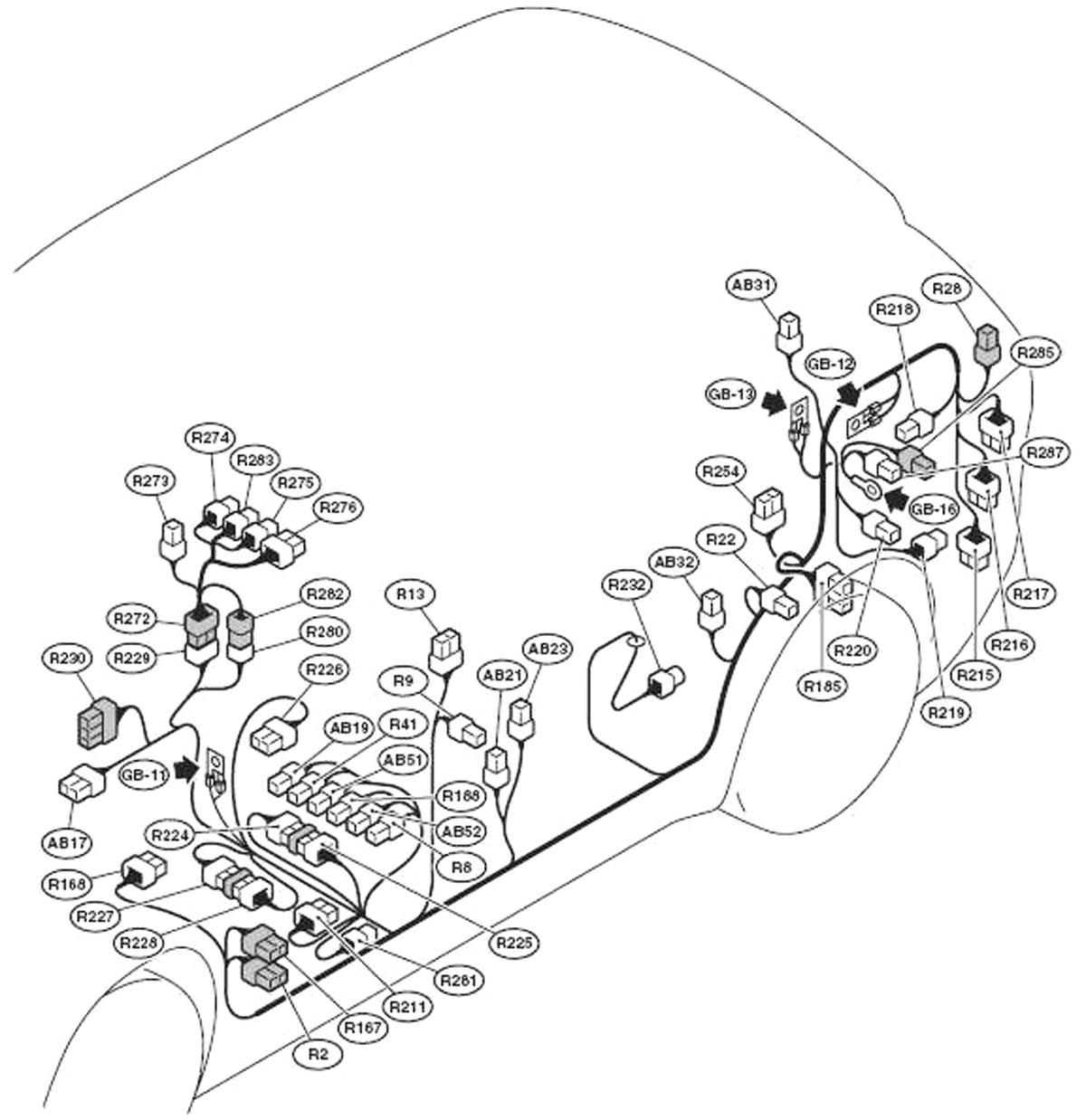

Fig 7: Rear & Right Side Of Vehicle

Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Rear & Left Side Of Vehicle

Courtesy of SUBARU OF AMERICA, INC.

Fig 9: Doors

Courtesy of SUBARU OF AMERICA, INC.

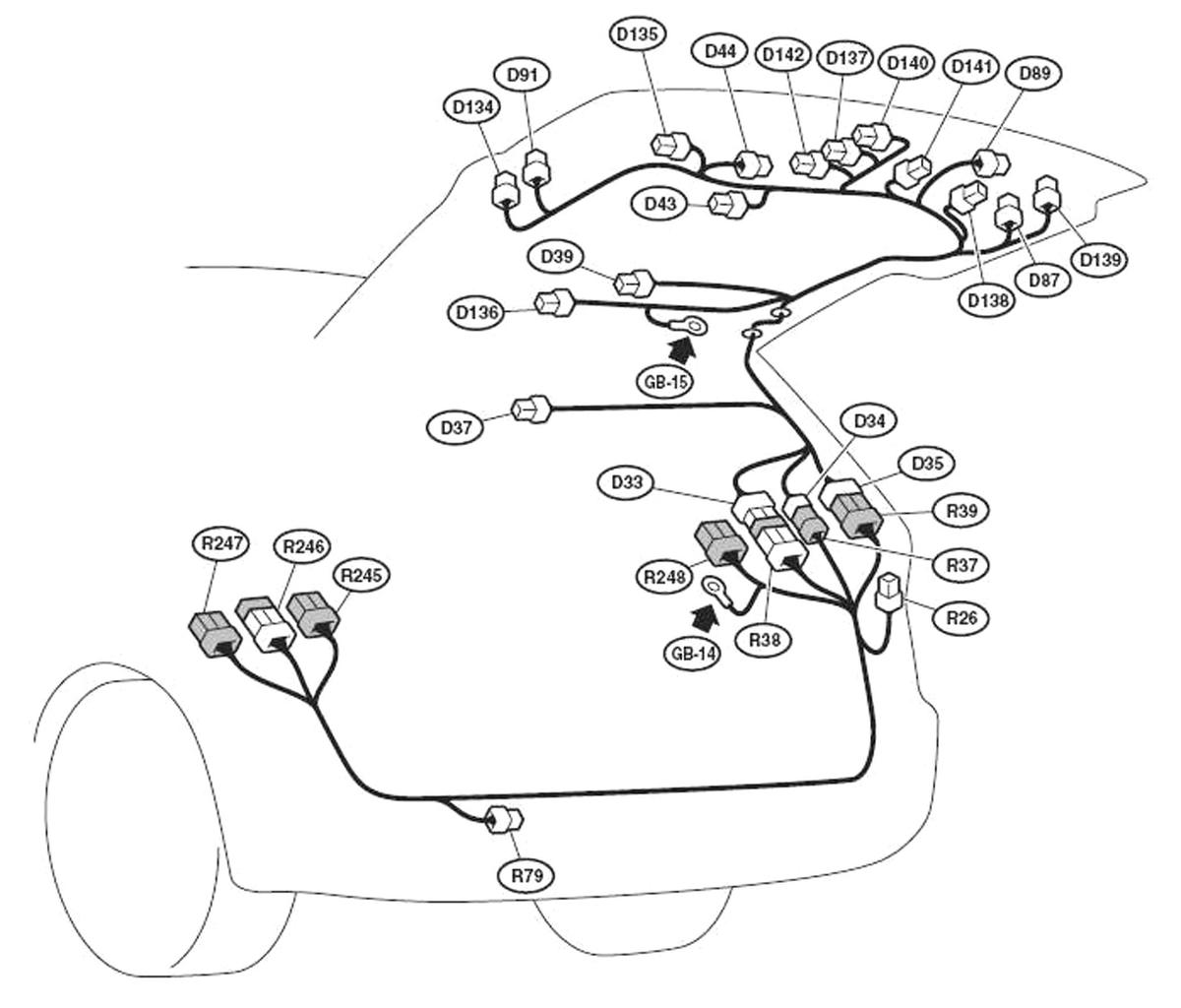

Fig 10: Rear Of Vehicle & Rear Gate

Courtesy of SUBARU OF AMERICA, INC.
