Fuel Filler Pipe: Installation

Open the fuel filler lid.
Set the fuel saucer (A) with rubber seal (C), and insert the fuel filler pipe into hole from the inner side of apron.
Align the holes in fuel filler pipe neck and set the cup (B), and tighten the nuts.
NOTE: If the edges of rubber gasket are folded toward inside, straighten it with a flat tip screwdriver.

Fig 1: Identifying Fuel Saucer And Rubber Seal
Courtesy of SUBARU OF AMERICA, INC.
Correctly insert the fuel filler hose to specified position, and then tighten the clamp.

Fig 2: Identifying Fuel Filler Hose
Courtesy of SUBARU OF AMERICA, INC.

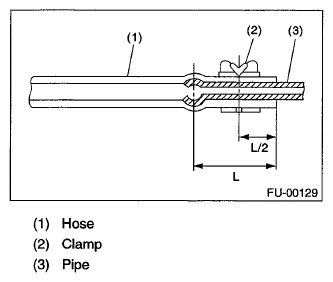

Fig 3: Identifying Hose, Clamp And Pipe
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts which hold fuel filler pipe bracket on the body.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 4: Locating Fuel Filler Pipe Bracket And Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the rear suspension assembly. Ref. to INSTALLATION , Rear Sub Frame.
Install the mud guard. Ref. to INSTALLATION , Mud Guard.
Lower the vehicle.
Install the rear wheel RH.
Tightening torque:

Chromed plated wheel

150 N.m (15.3 kgf-m, 110.6 ft-lb)

Other than above

120 N.m (12.2 kgf-m, 88.5 ft-lb)
Connect the ground cable to battery.
