Fuel Sub Level Sensor: Removal

WARNING: Place "NO OPEN FLAMES" signs near the working area.

CAUTION:

Be careful not to spill fuel.
When the fuel gauge pointer is at two third or more, the fuel may spill out. Be sure to drain the fuel before the operation.

Release the fuel pressure. Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel.
Drain fuel. Ref. to DRAINING FUEL (WITH SUBARU SELECT MONITOR) , PROCEDURE, Fuel.
Remove the second row seats. Ref. to REMOVAL , Second Seat.
Remove the service hole cover.

Fig 1: Identifying Service Hole Cover
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the fuel sub level sensor.

Fig 2: Identifying Fuel Sub Level Sensor
Courtesy of SUBARU OF AMERICA, INC.

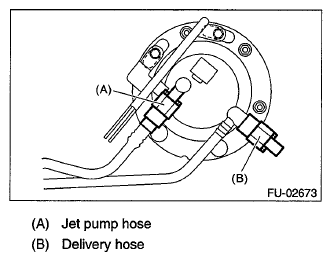

Disconnect the quick connector, and then disconnect the fuel delivery hose and jet pump hose. Ref. to REMOVAL , Fuel Delivery & Evaporation Lines.
Remove the nuts and bolts which install fuel sub level sensor on fuel tank.

Fig 3: Identifying Fuel Sub Level Sensor, Nuts And Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel sub level sensor.
