Intake Manifold: Removal

Remove the collector cover.
Release the fuel pressure. Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel.
Disconnect the ground cable from battery.
Open the fuel filler lid, and remove the fuel filler cap.
Remove the air cleaner case and air intake chamber. Ref. to REMOVAL , Air Cleaner Case. Ref. to REMOVAL , Air Intake Chamber.
Remove the generator. Ref. to REMOVAL , Generator.
Disconnect the connector (A) from the throttle body.
Disconnect the engine harness connector (B).

Fig 1: Locating Engine Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the engine coolant hoses from the throttle body.

Fig 2: Locating Engine Coolant Hoses
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the PCV hose.

Fig 3: Locating PCV Hose
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the brake booster hose.

Fig 4: Locating Brake Booster Hose
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the fuel hoses from the fuel pipe.
1. Disconnect the connector of fuel pipe by pushing the ST in the direction of arrow.
  ST 42099AE000 QUICK CONNECTOR RELEASE
2. Remove the clip, and disconnect the evaporation hose from the pipe.
  CAUTION:
  - Be careful not to spill fuel.
  - Catch the fuel from hoses using a container or cloth.

    Fig 5: Identifying Quick Connector Release
    Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel pipe protector LH.

Fig 6: Locating Fuel Pipe Protector Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the engine harness from the fuel injector pipe LH.

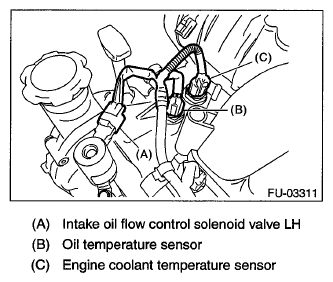

Disconnect the connectors of the oil temperature sensor, engine coolant temperature sensor, intake oil flow control solenoid valve LH.

Fig 7: Identifying Oil Temperature Sensor And Engine Coolant Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which hold fuel injector pipe LH to cylinder head.

Fig 8: Locating Fuel Injector Pipe LH Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector of intake oil flow control solenoid valve RH.

Fig 9: Identifying Intake Oil Flow Control Solenoid Valve Connector RH
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel pipe protector RH.

Fig 10: Locating Fuel Pipe Protector RH
Courtesy of SUBARU OF AMERICA, INC.
Remove the engine harness from the fuel injector pipe RH.
Remove the bolts which hold the fuel injector pipe RH to the cylinder head.

Fig 11: Locating Fuel Injector Pipe RH Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which hold the intake manifold to the cylinder head.
- LH side

  Fig 12: Locating Intake Manifold Bolts (LH Side)
  Courtesy of SUBARU OF AMERICA, INC.
- RH side

  Fig 13: Locating Intake Manifold Bolts (RH Side)
  Courtesy of SUBARU OF AMERICA, INC.
Remove the EGR pipe fixing bolt.

Fig 14: Locating EGR Pipe Fixing Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the intake manifold.
