Knock Sensor: Installation

  1. Install the knock sensor to the cylinder block.

    Tightening torque:

    25 N.m (2.5 kgf-m, 18.4 ft-lb)

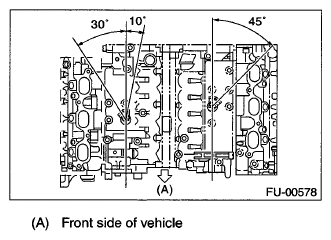

    NOTE: For the knock sensor installation angle, refer to the illustration below.
    Fig 1: Identifying Knock Sensor Installation Angle
    G06341870Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the knock sensor connector.
  3. Install the intake manifold. Ref. to INSTALLATION , Intake Manifold.
  4. Connect the ground cable to battery.
  5. Install the collector cover.
