Special Tool

SUBARU SELECT MONITOR

ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
G05954455Courtesy of SUBARU OF AMERICA, INC.
 1B022XU0 SUBARU SELECT MONITOR III KIT Used for settings of each function and troubleshooting for electrical system.
TEST HARNESS DESCRIPTION CHART

ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
G05003940Courtesy of SUBARU OF AMERICA, INC.
 98299XA000 TEST HARNESS AB Used when measuring voltage and resistance of occupant detection system.

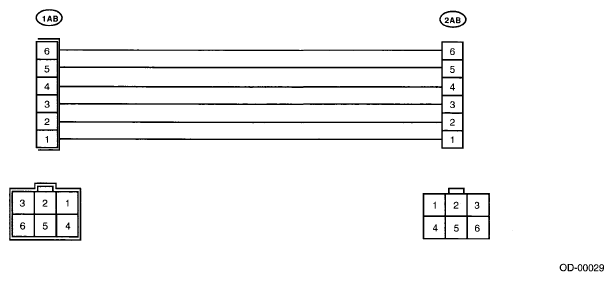

Fig 1: Identifying Test Harness AB
G05003941Courtesy of SUBARU OF AMERICA, INC.
TEST HARNESS DESCRIPTION CHART

ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
G05003942Courtesy of SUBARU OF AMERICA, INC.
 98299XA030 TEST HARNESS AE
  • Used for diagnosing seat belt tension sensor.
  • Used together with test harness Y.

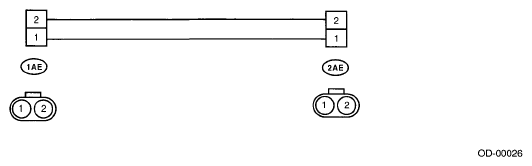

Fig 2: Identifying Test Harness AE
G05003943Courtesy of SUBARU OF AMERICA, INC.
TEST HARNESS DESCRIPTION CHART

ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
G05663418Courtesy of SUBARU OF AMERICA, INC.
 98299AG070 TEST HARNESS AG Used when measuring voltage and resistance of airbag control module.
Fig 3: Test Harness AG Connector Terminals Chart
G05663419Courtesy of SUBARU OF AMERICA, INC.
Fig 4: Identifying Test Harness AG
G05663420Courtesy of SUBARU OF AMERICA, INC.
TEST HARNESS DESCRIPTION CHART

ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
G05003938Courtesy of SUBARU OF AMERICA, INC.
 98299AG040 TEST HARNESS Y Used for troubleshooting seat belt buckle switch.
Fig 5: Identifying Test Harness Y
G05003939Courtesy of SUBARU OF AMERICA, INC.
AIRBAG RESISTOR DESCRIPTION CHART

ILLUSTRATION TOOL NUMBER Description REMARKS
G05003996Courtesy of SUBARU OF AMERICA, INC.
 98299PA040 AIRBAG RESISTOR Used in replacement of airbag module for which resistance value is same as airbag module. Two ST are required for diagnosis of two-stage inflator type airbag module.
Fig 6: Identifying Airbag Resistor
G05003997Courtesy of SUBARU OF AMERICA, INC.
