Front Bushing

Assemble in the reverse order of disassembly.

CAUTION: Install the front bushing in proper direction as shown in the figure.

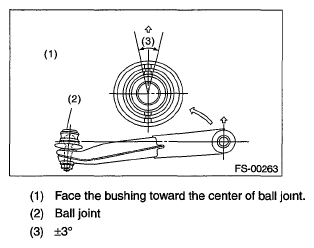

Fig 1: Identifying Front Bushing Angle
G06343187Courtesy of SUBARU OF AMERICA, INC.
