Transfer Case, Extension Case & Reduction Gear

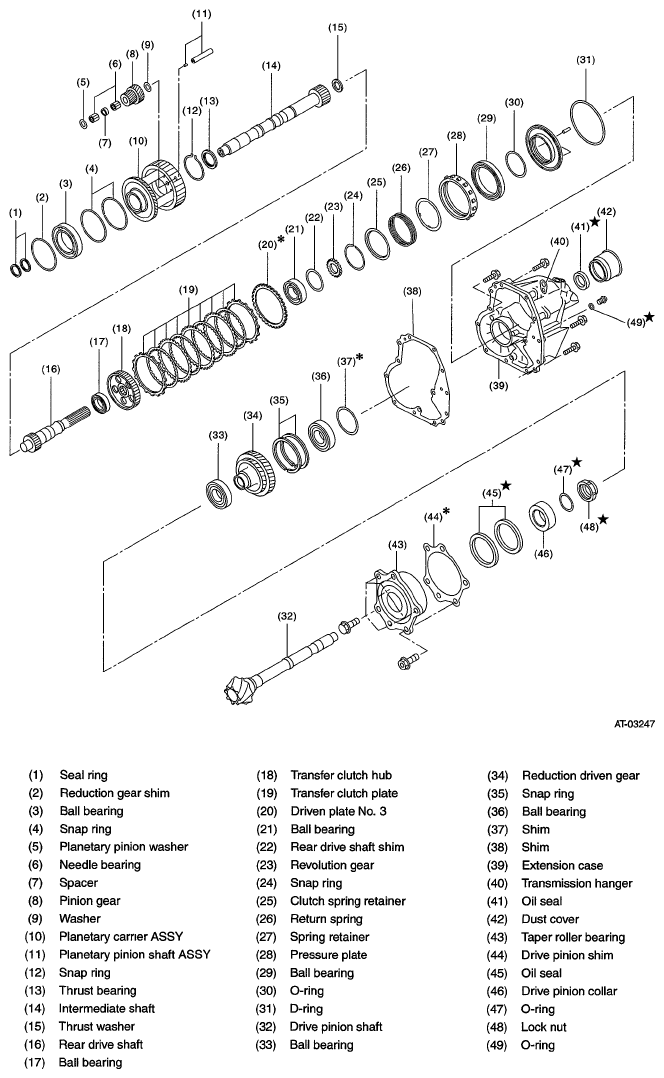

Fig 1: Exploded View Of Transfer Case, Extension Case And Reduction Gear
G06342800Courtesy of SUBARU OF AMERICA, INC.
