AT Shift Lock Control System: Wiring Diagram

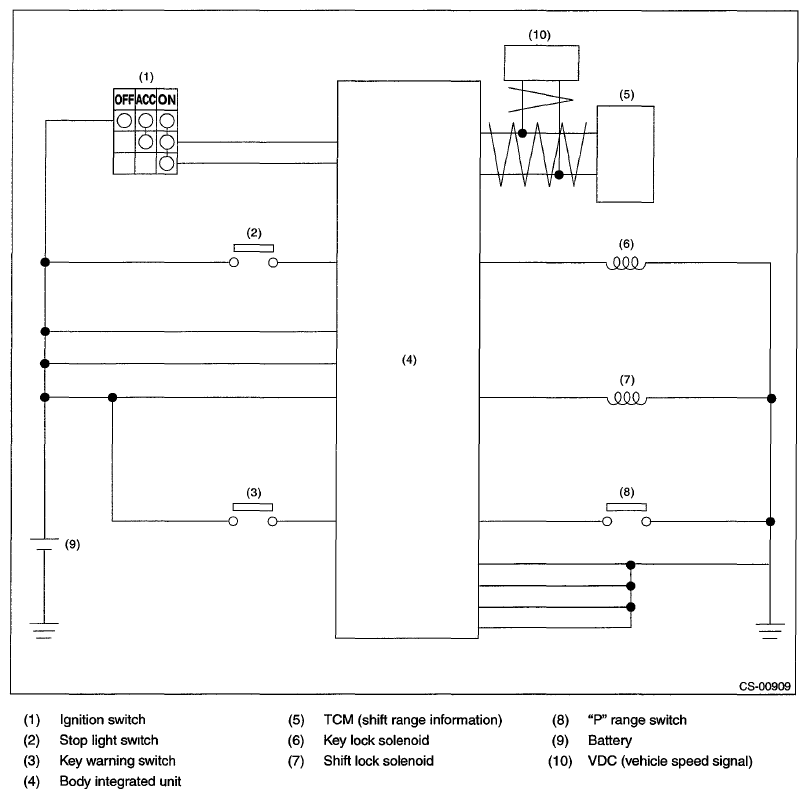

Fig 1: AT Shift Lock Control - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
