Select Cable: Removal

  1. Set the vehicle on a lift.
  2. Shift the select lever to "N" range.
  3. Disconnect the ground cable from battery.
  4. Lift up the vehicle.
  5. Remove the front exhaust pipe, rear exhaust pipe and muffler. Ref. to REMOVAL , Front Exhaust Pipe. Ref. to REMOVAL , Rear Exhaust Pipe. Ref. to REMOVAL , Muffler.
  6. Remove the heat shield cover.
  7. Remove the snap pin and washer from range select lever.

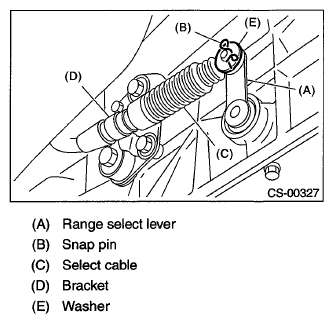

    Fig 1: Identifying Range Select Lever, Snap Ring, Select Cable, Bracket And Washer
    G06342771Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the plate assembly from the transmission case.

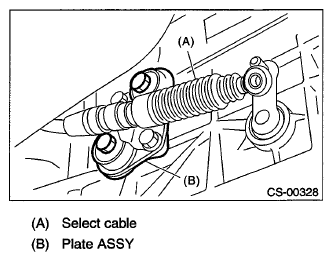

    Fig 2: Identifying Select Cable And Plate Assembly
    G06342772Courtesy of SUBARU OF AMERICA, INC.
  9. Disconnect the cable from arm assembly.

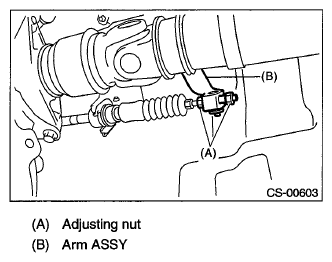

    Fig 3: Identifying Adjusting Nut And Arm Assembly
    G06342773Courtesy of SUBARU OF AMERICA, INC.
  10. Raise the pawl of clamp to remove the cable from bracket.

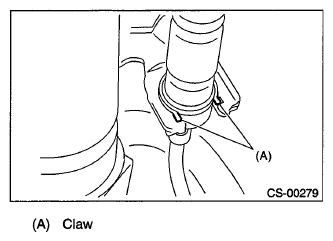

    Fig 4: Identifying Claw
    G06342774Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the select cable from plate assembly.
