Select Lever: Removal

  1. Set the vehicle on a lift.
  2. Disconnect the ground cable from the battery.
  3. Shift the select lever to "N" range.
  4. Lift up the vehicle.
  5. Remove the rear exhaust pipe and muffler. Ref. to REMOVAL , Rear Exhaust Pipe. Ref. to REMOVAL , Muffler.
  6. Remove the heat shield cover.
  7. Remove the cable from arm assembly.

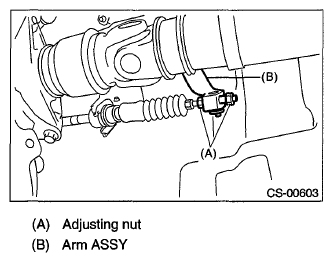

    Fig 1: Identifying Adjusting Nut And Arm Assembly
    G06342730Courtesy of SUBARU OF AMERICA, INC.
  8. Raise the pawl of clamp to remove the cable.

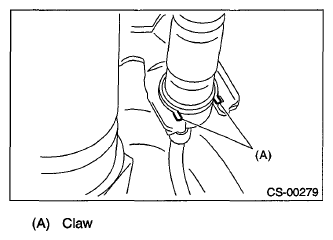

    Fig 2: Identifying Claw
    G06342731Courtesy of SUBARU OF AMERICA, INC.
  9. Lower the vehicle.
  10. Remove the console box. Ref. to REMOVAL , Console Box.
  11. Remove the center console. Ref. to REMOVAL , Center Console.
  12. Remove all harnesses from the select lever.
    Fig 3: Identifying Select Lever Harnesses
    G05031898Courtesy of SUBARU OF AMERICA, INC.
  13. Disconnect the connectors, and then remove the four bolts to take out the select lever assembly from vehicle body.
    Fig 4: Locating Select Lever Assembly Bolts
    G05031899Courtesy of SUBARU OF AMERICA, INC.
