AT Shift Lock Control System: Wiring Diagram

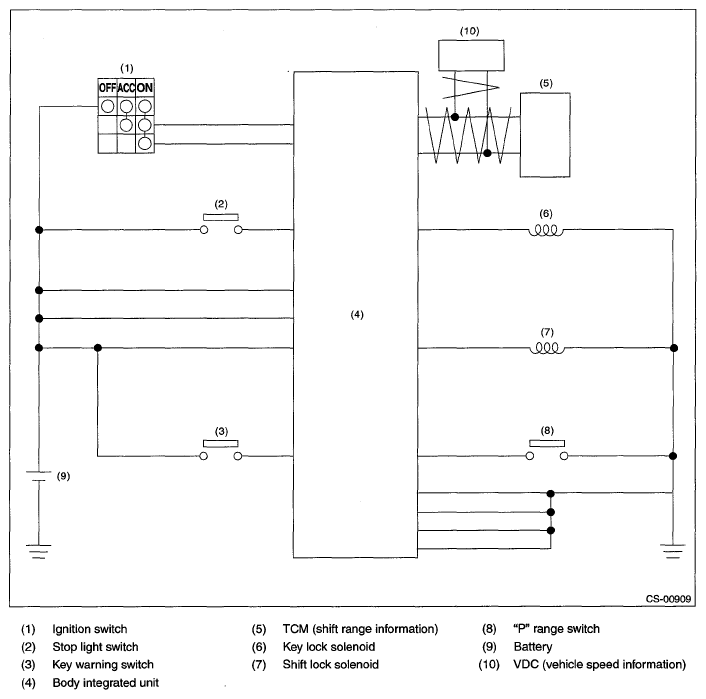

Fig 1: Ignition Switch - Circuit Schematic

G05955779

Courtesy of SUBARU OF AMERICA, INC.
