General Description
>>
Components With Torque Specifications
>>
At Select Lever
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
At Select Lever

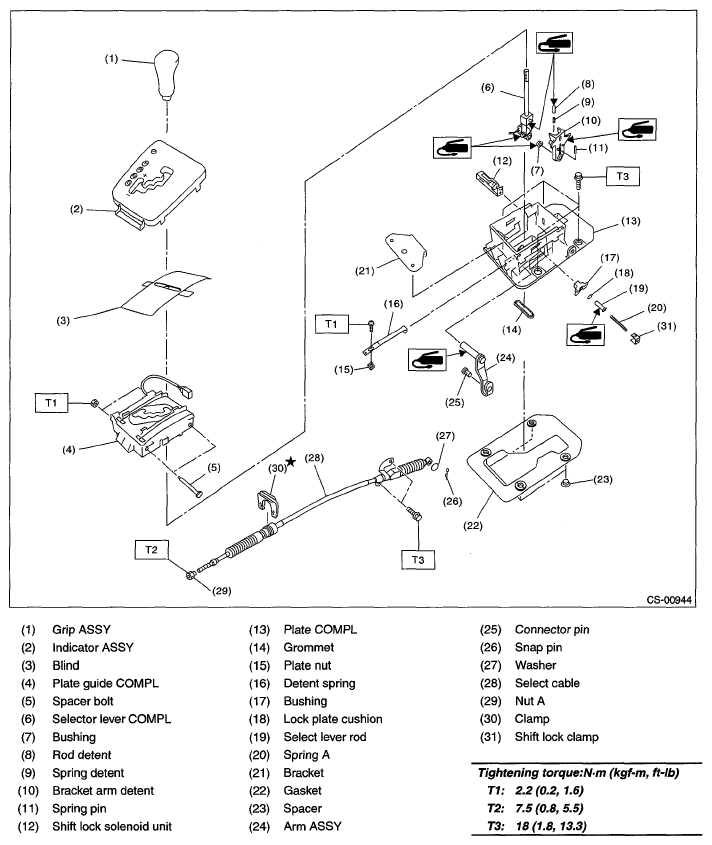

Fig 1: Exploded View Of AT Select Lever With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
