Select Lever: Assembly
- Clean all the parts before assembly.
- Apply NIGTIGHT LYW No. 2 grease or equivalent to each part. Refer to
AT SELECT LEVER , COMPONENT, General Description.
- Assemble in the reverse order of disassembly.
NOTE:

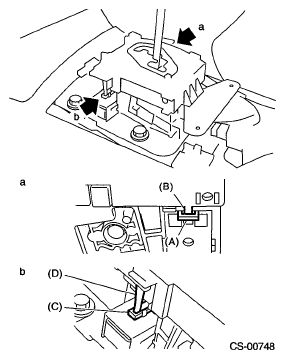

- When installing the plate guide COMPL, set the select lever to "D" range (normal mode position), and be careful of the following.
- Insert protrusion (B) of the plate guide COMPL into the hole on the shift lock solenoid unit (A).
- Insert link (D) of the shift lock release into link (C) of the shift lock solenoid unit.
Courtesy of SUBARU OF AMERICA, INC.

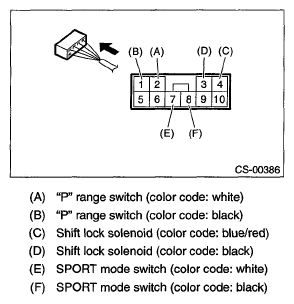

- Connect the switch and solenoid terminals to the connector.
Courtesy of SUBARU OF AMERICA, INC.
- After completing installation, shift the select lever from "P" range to "D" range, then check whether the indicator and select lever matches, whether the pointer and position mark matches and what the operating force is.
