5MT Gear Shift Lever
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
5MT Gear Shift Lever

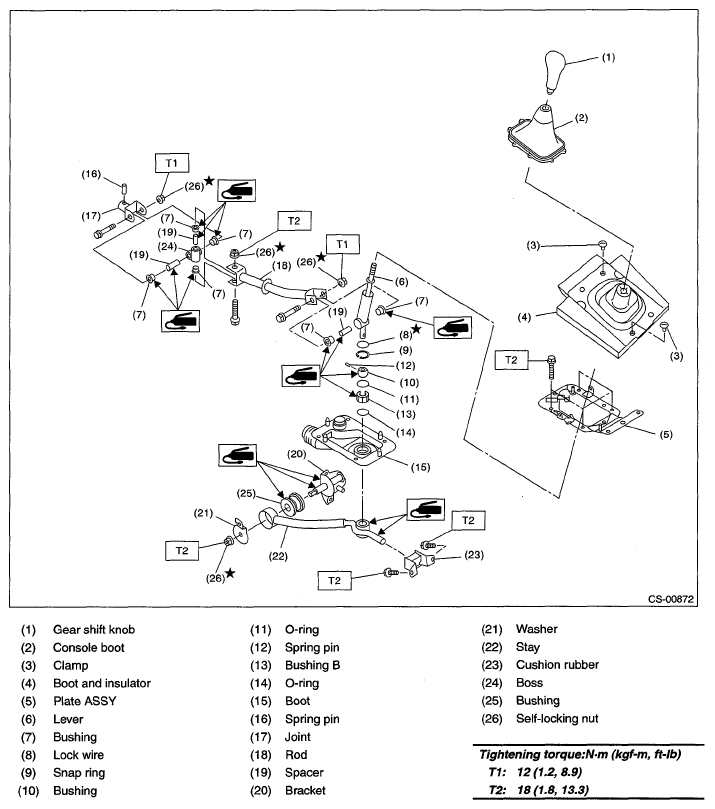

Fig 1: Exploded View Of 5MT Gear Shift Lever With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
