MT Gear Shift Lever: Assembly

NOTE:

Clean all the parts before assembly.
Apply NIGTIGHT LYW No. 2 grease or equivalent to each part. Refer to 5MT GEAR SHIFT LEVER , COMPONENT, General Description.

Mount the bushing and cushion rubber to the stay.

Fig 1: Identifying Bushing And Cushion Rubber

G05955860

Courtesy of SUBARU OF AMERICA, INC.

Install the bushing and spacer to boss.

Fig 2: Identifying Bushing And Spacer

G05955861

Courtesy of SUBARU OF AMERICA, INC.

Using new self-locking nuts, install the boss to the joint.

Fig 3: Identifying Self-Locking Nut And Joint
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: 12 N.m (1.2 kgf-m, 8.9 ft-lb)

Install the snap ring to gear shift lever and install the bushing.
NOTE: Apply grease to the bushing.

Fig 4: Identifying Snap Ring And Bushing
Courtesy of SUBARU OF AMERICA, INC.
Apply grease to the bushing and O-ring, and then install to gear shift lever.

Fig 5: Identifying Bushing And O-Ring With Snap Ring

G05955864

Courtesy of SUBARU OF AMERICA, INC.

Apply sufficient grease into boss, and then install the gear shift lever to the stay.

Fig 6: Identifying Gear Shift Lever And Stay

G05002345

Courtesy of SUBARU OF AMERICA, INC.

Install the washer and snap ring.

Fig 7: Identifying Snap Ring

G05955866

Courtesy of SUBARU OF AMERICA, INC.

Insert the gear shift lever and rod into boot hole.
Install the rod.

Tightening torque: 12 N.m (1.2 kgf-m, 8.9 ft-lb)

Fig 8: Inserting Gear Shift Lever And Rod Into Boot Hole

G05955867

Courtesy of SUBARU OF AMERICA, INC.

Install a new lock wire.

Fig 9: Identifying Lock Wire

G05955868

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

Install the lock wire to the stay groove.
Bend the extra wire to the same direction of lock wire winding.

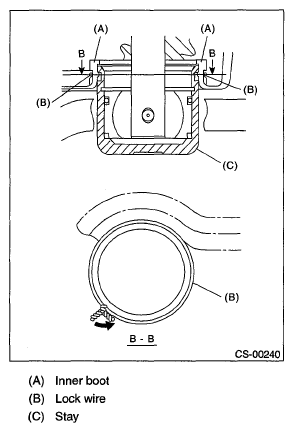

Fig 10: Identifying Inner Boot, Lock Wire And Stay

G05955869

Courtesy of SUBARU OF AMERICA, INC.
