Special Tool

Subaru Select Monitor

PREPARATION TOOL DESCRIPTION

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	1B022XU0	SUBARU SELECT MONITOR III KIT	Used for setting of each function and troubleshooting for electrical system.

TEST HARNESS AD

TEST HARNESS AD DESCRIPTION

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299XA020	TEST HARNESS AD	Used when measuring voltage and resistance of the occupant detection system.

Fig 1: Identifying Test Harness AD Terminal Layout

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS AG

TEST HARNESS AG DESCRIPTION

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299AG070	TEST HARNESS AG	Used when measuring voltage and resistance of airbag control module.

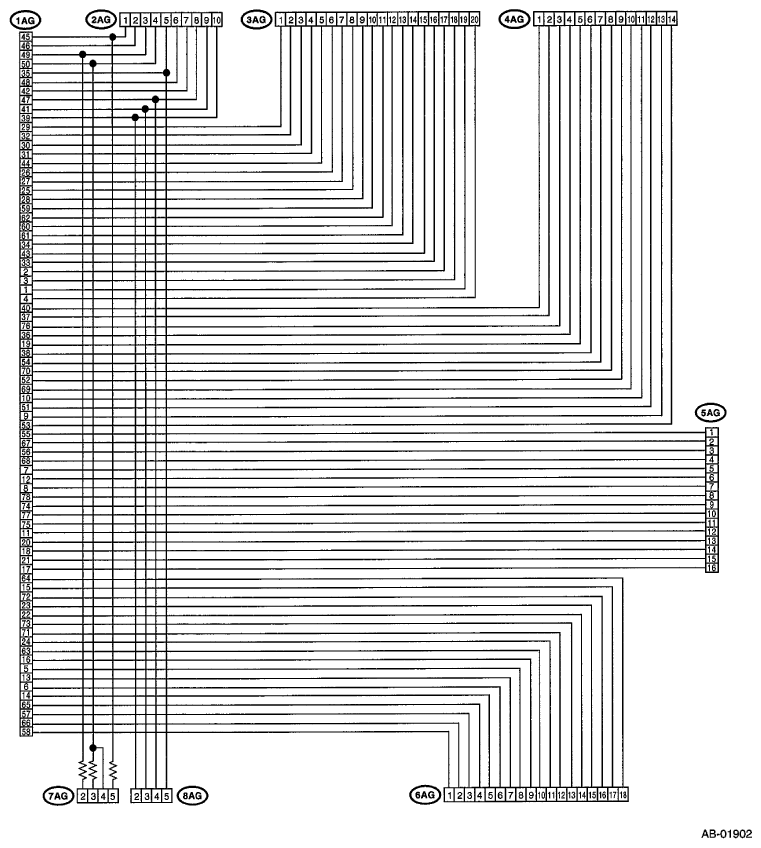

Fig 2: Identifying Test Harness AG Terminal Layout (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Identifying Test Harness AG Terminal Layout (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

TEST HARNESS Y

TEST HARNESS Y DESCRIPTION

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299AG040	TEST HARNESS Y	Used for troubleshooting seat belt buckle switch.

Fig 4: Identifying Test Harness Y Terminal Layout

Courtesy of SUBARU OF AMERICA, INC.

AIRBAG RESISTOR

AIRBAG RESISTOR HARNESS DESCRIPTION

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Courtesy of SUBARU OF AMERICA, INC.	98299PA040	AIRBAG RESISTOR	Used in replacement of airbag module for which resistance value is same as airbag module. Two ST are required for diagnosis of two-stage inflator type airbag module.

Fig 5: Identifying Airbag Resistor Harness Terminal Layout

Courtesy of SUBARU OF AMERICA, INC.
