Inhibitor Switch: Removal

Set the vehicle on a lift.
Shift the select lever to "N" range.
Disconnect the ground cable from battery.
Lift up the vehicle.
Remove the center exhaust pipe. Ref. to REMOVAL , Center Exhaust Pipe.
Remove the snap pin and washer from the shifter arm.

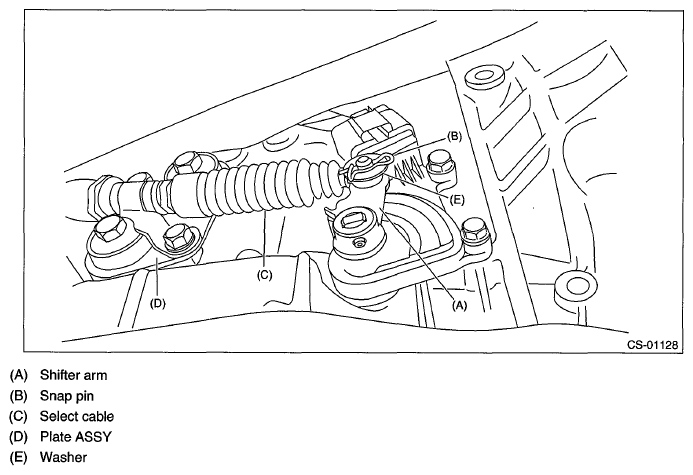

Fig 1: Identifying Snap Pin, Washer And Shifter Arm
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the spring pin and shifter arm.
ST 398791600 REMOVER

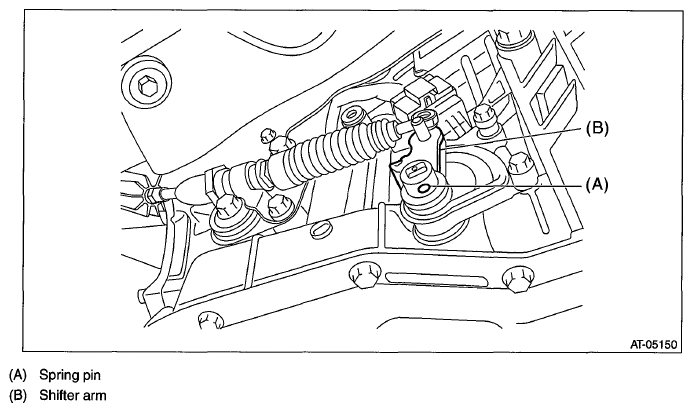

Fig 2: Identifying Spring Pin And Shifter Arm
Courtesy of SUBARU OF AMERICA, INC.
Remove the inhibitor harness connector from inhibitor switch.
Remove the two inhibitor switch securing bolts.

Fig 3: Locating Inhibitor Switch Securing Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the inhibitor switch from the transmission case.
