Transfer Clutch: Disassembly

Remove the snap ring, and then remove the retaining plate, drive plate and driven plate.

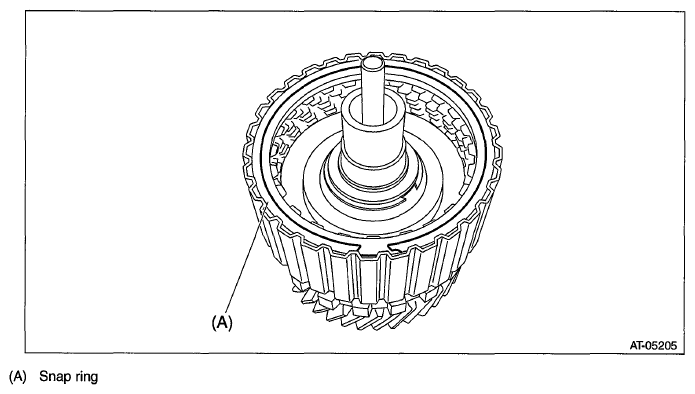

Fig 1: Identifying Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the snap ring.
ST 18762AA000 COMPRESSOR SPECIAL TOOL

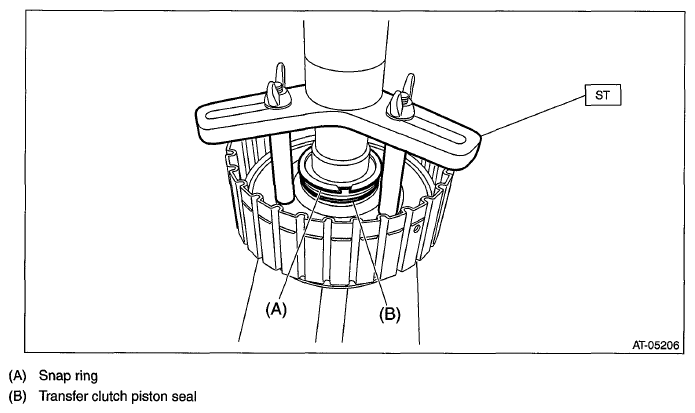

Fig 2: Removing Snap Ring Using ST
Courtesy of SUBARU OF AMERICA, INC.
Remove the transfer clutch piston seal.
Remove the return spring.

Fig 3: Removing Return Spring
Courtesy of SUBARU OF AMERICA, INC.
Remove the transfer clutch piston by blowing compressed air through transfer clutch assembly hole.
NOTE: Block the hole opposite to the one to be blown with compressed air by your finger.

Fig 4: Locating Transfer Clutch Assembly Hole
Courtesy of SUBARU OF AMERICA, INC.
Using ST, remove transfer drive gear, parking gear and ball bearing.
ST 18767AA000 BEARING REMOVER

NOTE: Let the ST sit on the parking gear.

Fig 5: Removing Transfer Drive Gear, Parking Gear And Ball Bearing
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring from transfer reduction drive gear.

Fig 6: Removing Snap Ring From Transfer Reduction Drive Gear
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the parking gear from transfer reduction drive gear.
ST1 499277100 BUSHING 1-2 INSTALLER

ST2 18767AA000 BEARING REMOVER

Fig 7: Identifying ST1 499277100 Bushing 1-2 Installer And ST2 18767Aa000 Bearing Remover
