Transmission Control Device: Removal

Remove the transmission assembly from vehicle body. Ref. to REMOVAL , Automatic Transmission Assembly.
Remove the oil pan and control valve body. Ref. to REMOVAL , Control Valve Body.
Remove the inhibitor switch. Ref. to REMOVAL , Inhibitor Switch.
Remove the spring pin.
NOTE: Prevent the spring pin from dropping in the transmission using paper towel etc.

Fig 1: Locating Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt and remove the range select lever, manual plate and parking rod.
NOTE: Do not damage the lip of oil seal press-fitted in the case.

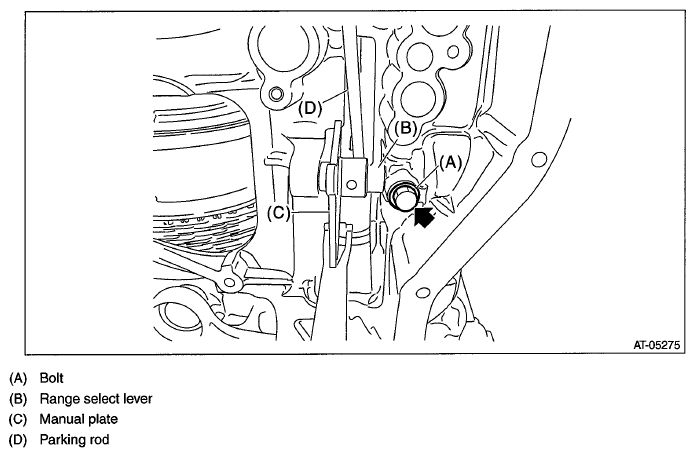

Fig 2: Locating Bolt, Range Select Lever, Manual Plate And Parking Rod
Courtesy of SUBARU OF AMERICA, INC.
Remove the detent spring.

Fig 3: Locating Detent Spring
Courtesy of SUBARU OF AMERICA, INC.
