MT Gear Shift Lever: Installation

Install the gear shift lever assembly.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 1: Locating Gear Shift Lever Assembly Bolts
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Install the cover cable assembly.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 2: Locating Cover Cable Assembly Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the MT gear shift cable and MT gear select cable.
CAUTION:
- Be careful not to deform the cable inner.
- Do not twist the cable inner excessively.

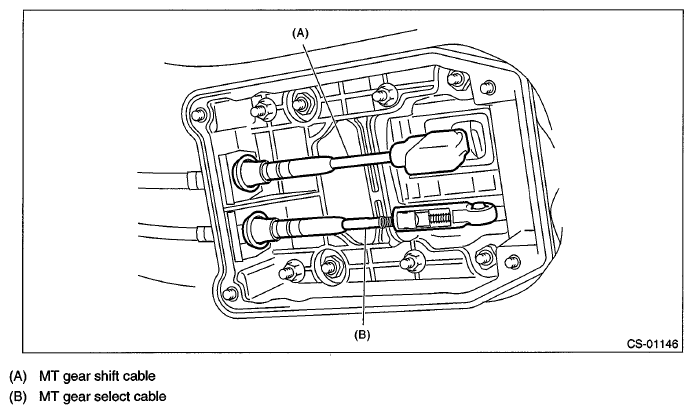

  Fig 3: Identifying MT Gear Shift Cable And MT Gear Select Cable
  Courtesy of SUBARU OF AMERICA, INC.
Install the plate cable assembly.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 4: Locating Plate Cable Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the heat shield cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 5: Identifying Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust pipe and rear exhaust pipe, (non-turbo model) Ref. to INSTALLATION , Center Exhaust Pipe. Ref. to INSTALLATION , Rear Exhaust Pipe.
Install the center exhaust pipe (rear) and rear exhaust pipe, (turbo model) Ref. to INSTALLATION , Center Exhaust Pipe. Ref. to INSTALLATION , Rear Exhaust Pipe.
Lower the vehicle.
Install the console front cover assembly and the console box. Ref. to INSTALLATION , Console Box.
Install the gear shift knob.
Make sure the gears can be shifted accurately into each gear. Adjust the MT gear select lever, if the gears cannot be shifted correctly. Ref. to ADJUSTMENT , MT Gear Select Cable.
